PureMounts PM-Spider-30W

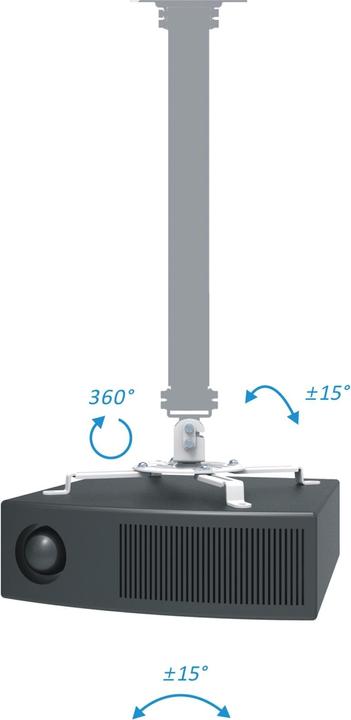

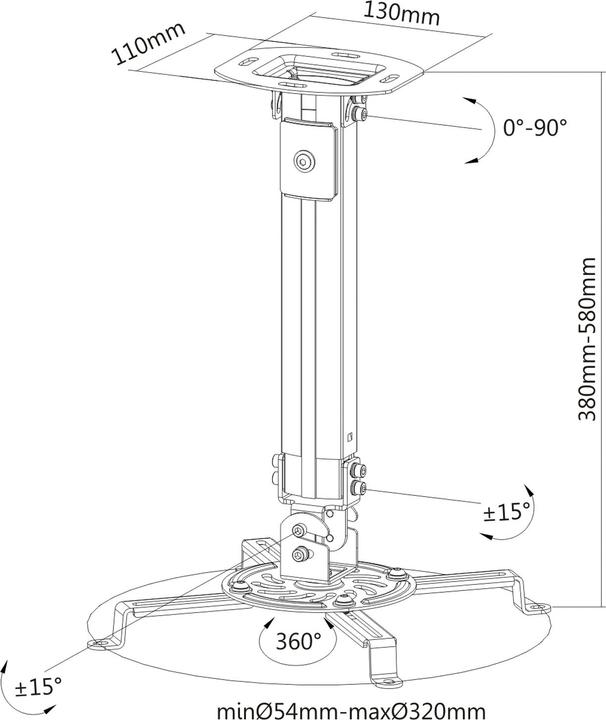

Step-less and silent adjustment options: The tilt range of 15° to -15° allows for perfect alignment of the projected image. With a swivel range of 360°, various positions in the room can be achieved. The variable ceiling distance from 380 mm to a generous 580 mm provides space for cabling.

The maximum load capacity of 13.5 kg is ensured by high-quality material selection (steel). The maximum hole distance for mounting the bracket on the projector is 320 mm.

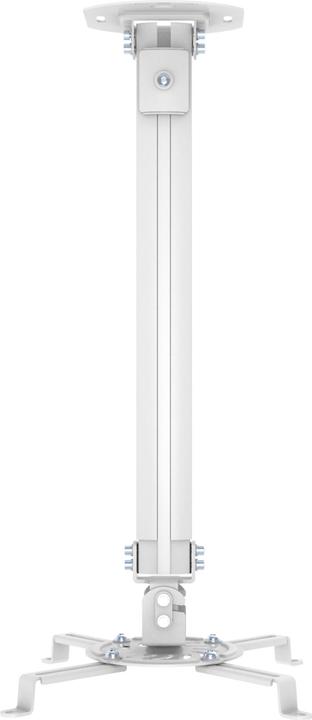

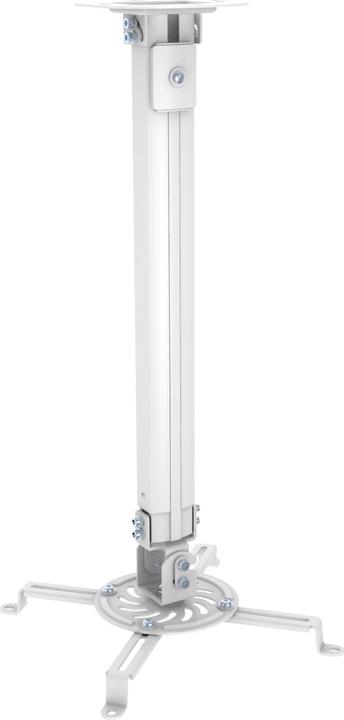

Function and design in perfect combination! The bracket is primarily white, making it ideal for installation under mostly white ceilings.

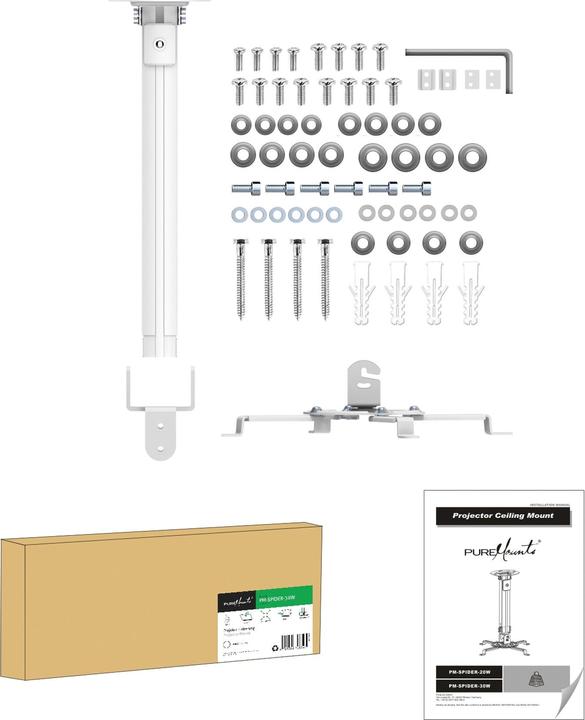

Easy to install - everything included! The installation manual is clear, self-explanatory, and includes a table of contents. It is also illustrated with drawings and pictograms. Included in the delivery: all mounting materials!

Before mounting the bracket, please consider the following: Depending on the offset of your projector and screen height, the ceiling distance should be chosen. The offset value indicates how many percent the center of the screen is above or below the lens of the projector: 0% = lens center and screen center at the same height, 50% = projector at the height of the bottom edge of the screen, -50% = projector at the height of the top edge of the screen.

Setting the viewing distance: Viewing distance divided by two = optimal image width and vice versa.
