Purecrea XL6009 Switching regulator DC-DC Step-UP (step-up converter)
More than 10 pieces in stock at third-party supplier
Product details

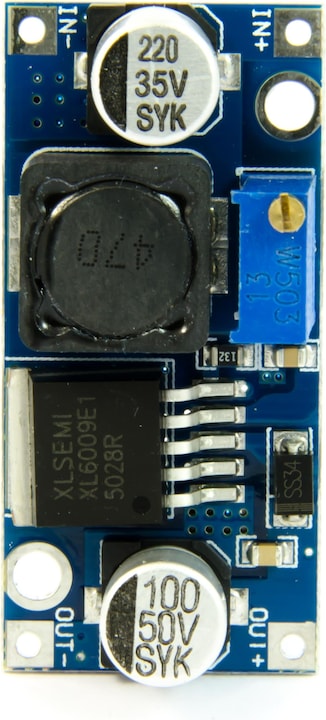

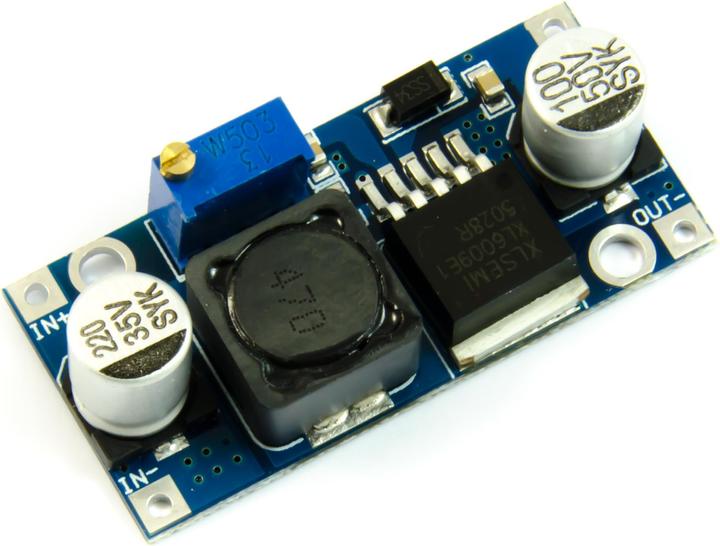

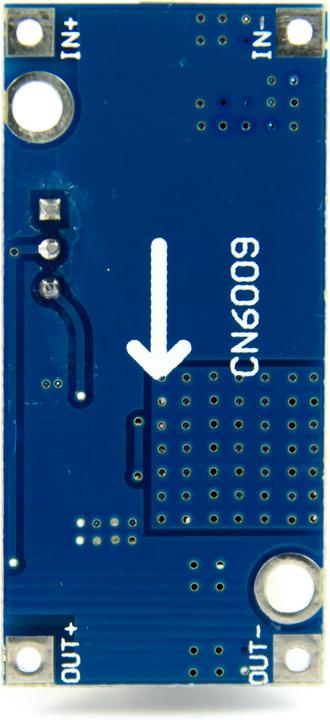

The XL6009 is an adjustable voltage regulator that converts a lower input voltage into a higher adjustable output voltage. The advantage of this switching regulator is that it has a very high efficiency while being very compact in size. The input voltage must always be at least 1V lower than the output voltage.
Important: If the input voltage drops below 3.5V, a significantly higher voltage may appear at the output.
Technical details:
Input voltage: 3.5V – 32V
Output voltage: 5V - 35V (adjustable via potentiometer)
Output current: 2A nominal
Efficiency: up to 94%
Size: 43 x 20 x 14mm
Weight: 10g
Delivery includes:
1x XL6009 switching regulator DC-DC Step-Up.
Item number | 36359712 |
Manufacturer | Purecrea |
Category | Development boards + Kits |
Release date | 15.6.2023 |
Sales rank in Category Development boards + Kits | 117 of 2777 |
Operating voltage | 32 V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x XL6009 Switching regulator DC-DC Step-UP |
Weight | 10 g |
