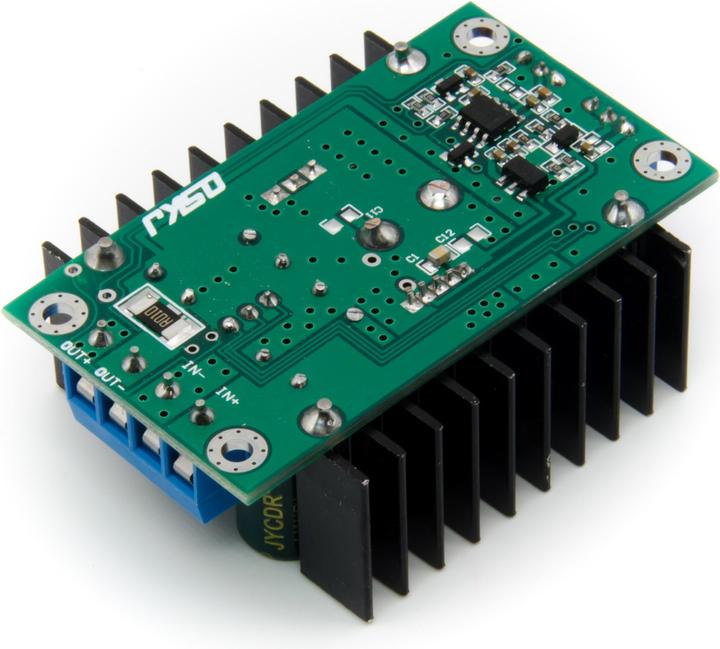

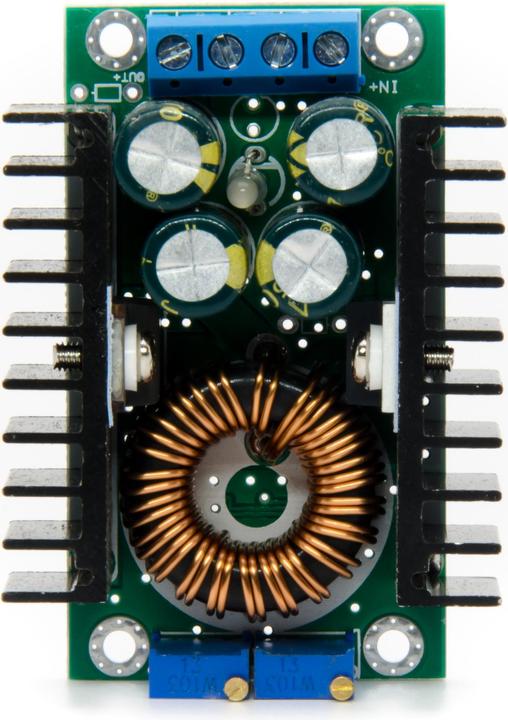

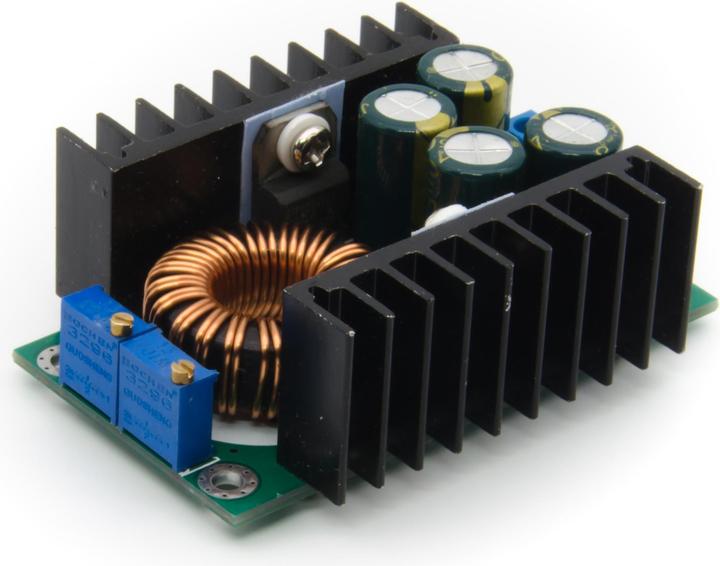

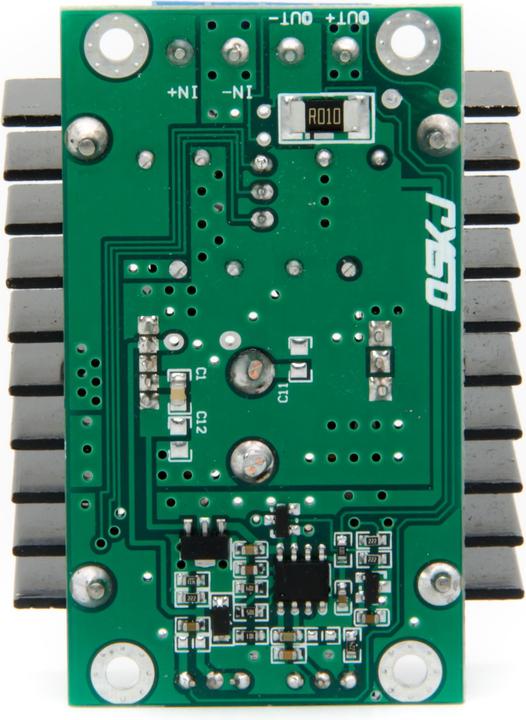

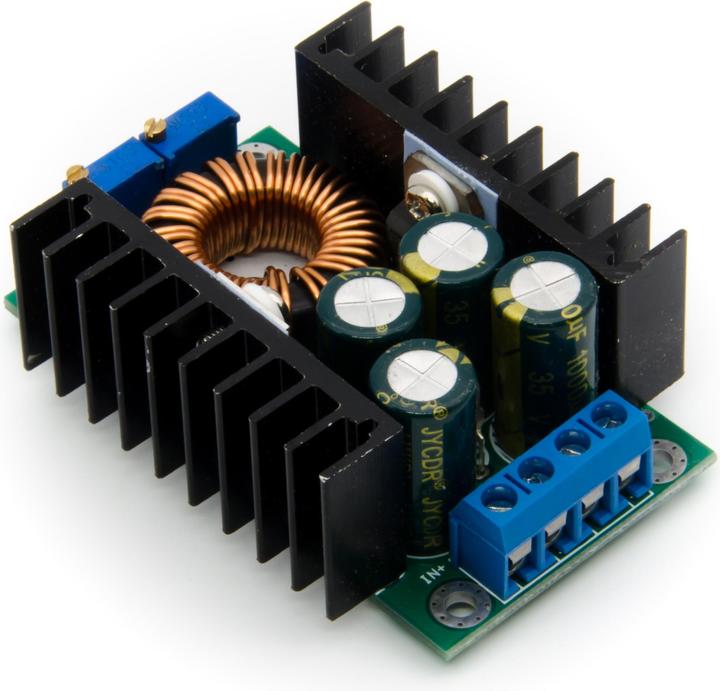

Purecrea XL4016 Step-Down DC-DC Buck Converter 300W

This high-power DC-DC CC/CV step-down module 300W is based on the XL4016. With this powerful step-down converter, you can regulate voltages between 7-40V DC down to a lower voltage range of 1.2V to 35V. The output voltage can be precisely adjusted using the built-in multiturn potentiometer. The second multiturn potentiometer allows you to set the current limit. This step-down converter is suitable as an LED driver for UV LEDs in an SLA printer, voltage converter, DIY chargers, or for powering various devices.

General information and operation of the 300W step-down XL4016:
Potentiometer:
Increase: Clockwise
Decrease: Counterclockwise
Function:
The potentiometer on the input voltage side is used for voltage adjustment (CV).
The potentiometer on the output side is used for current setting (CC).
Two-color LED indicator:
Current is not limited: Green
Current is limited: Red

Technical details:
Connection: Screw terminals
Input voltage: 7-40V DC
Output voltage: 1.2-35V DC
Output current: 8A (max.), up to 300W
Output noise: 50mV (20MHz bandwidth)
Load regulation: 1%
Voltage regulation: 1%
Dynamic response speed: 5% at 200µs
Switching frequency: 300kHz
Efficiency: up to 95%
Protection features: Thermal shutdown, current-limiting output, short-circuit protection
Dimensions: 65 x 47 x 22mm
Weight: 65.5g

Delivery includes:
1x XL4016 step-down DC-DC buck converter 300W.
