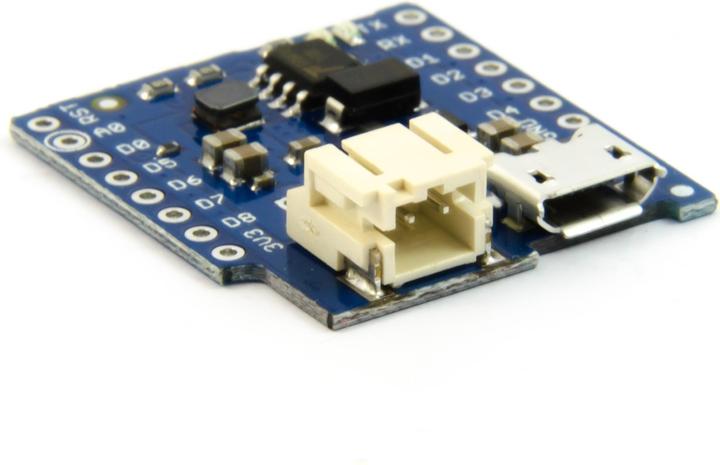

Purecrea WeMos D1 Mini LIPO Battery Shield V1.2.0

Ratings
BrandMore from Purecrea
Delivered between Thu, 17.7. and Fri, 18.7.
9 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

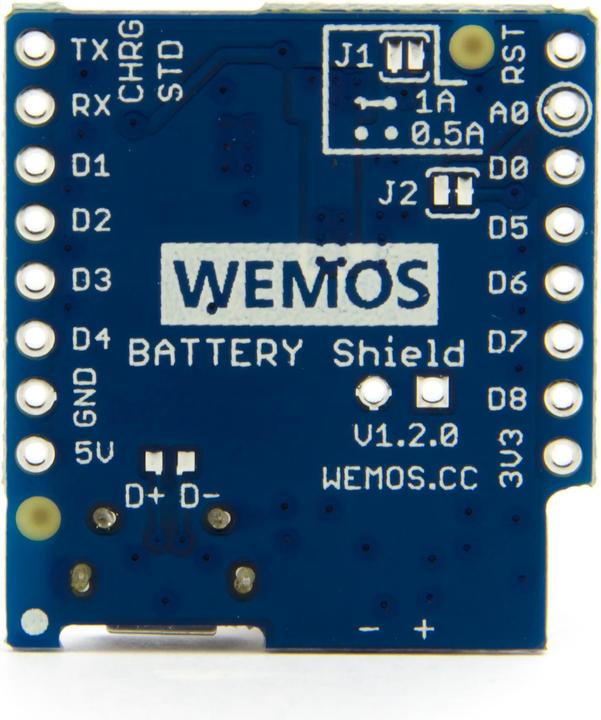

With this battery shield, you can power your ESP8266 for mobile applications. To achieve longer runtimes, it is important to put the ESP8266 into deep sleep mode and only wake it up when necessary. All of our LiPos with a JST 2mm connector can be connected to the shield. The charging current from the LiPo is set to 0.5A by default and can be increased to 1A with a solder bridge. This revised version of the battery shield is also a bit more energy-efficient than its predecessor.

Recommended Accessories:
LiPo Battery 1500mAh JST 2.0 / Lithium Ion Polymer
Li-Ion Battery 3000mA 18650 with protection circuitry and connector

Technical Details:

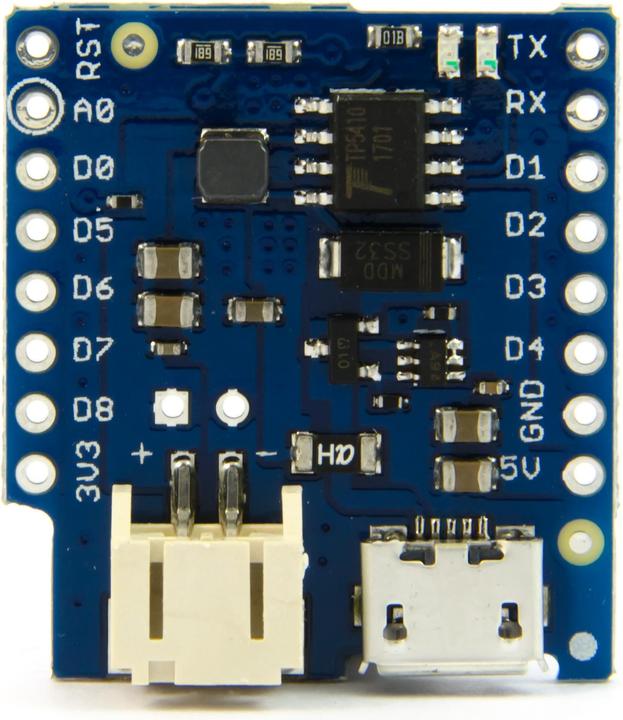

Chip: TP5410 Boost Regulator
Charging Port: Micro USB
Battery Connection: JST 2mm / PH 2mm Connector
Status LED Green: Charging completed
Status LED Red: Charging in progress
Suitable for: WeMos D1 mini ESP8266 NodeMcu Lua Board
Size: 28.5x26x7mm
Weight: 4g

Delivery Includes:

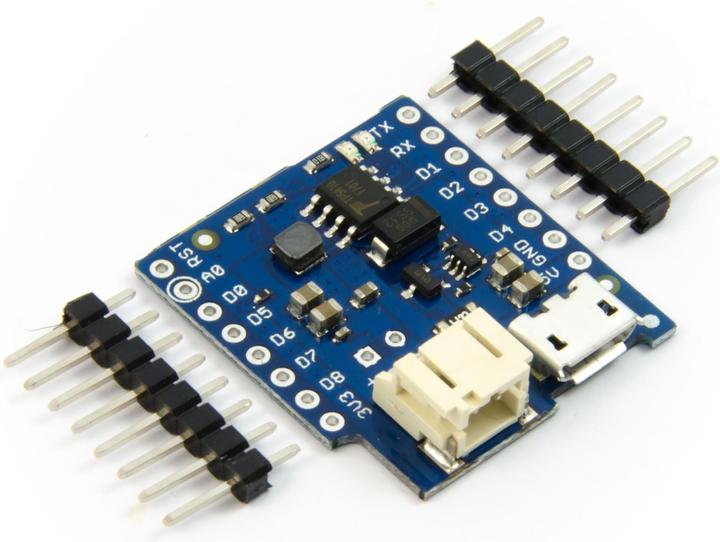

1x WeMos D1 Mini LIPO Battery Shield V1.2.0
2x 8-pin header strips.

Key specifications

Item number
38653912

General information

Manufacturer
Purecrea
Category
Development boards + Kits
Release date
15.9.2023

Power supply

Power supply
Battery operated

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x WeMos D1 Mini LIPO Battery Shield V1.2.0, 2x pin headers 8-pin

Product dimensions

Length
28.50 mm
Width
26 mm
Height
7 mm
Weight
4 g

30-day right of return
24 Months Warranty (Bring-in)
