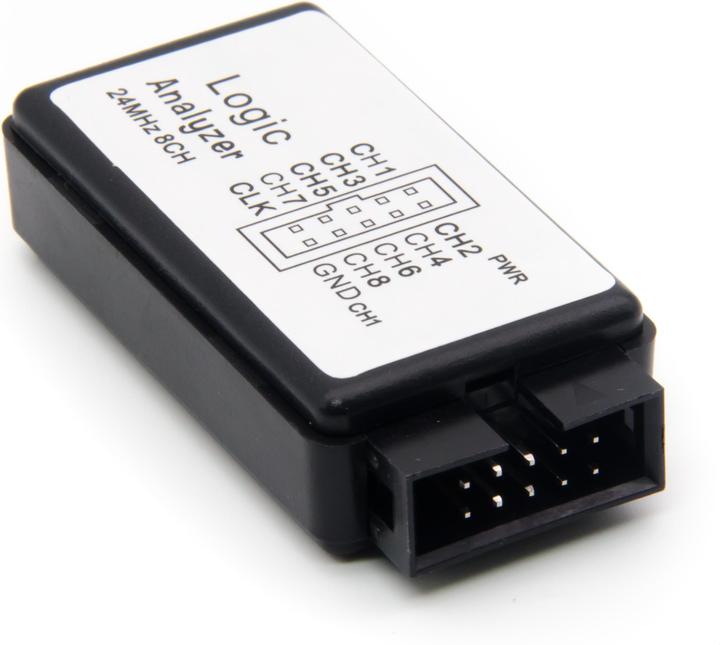

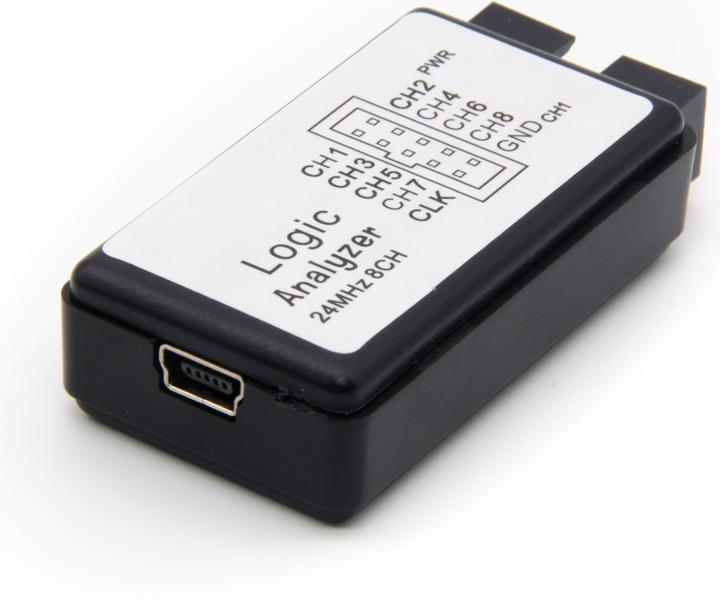

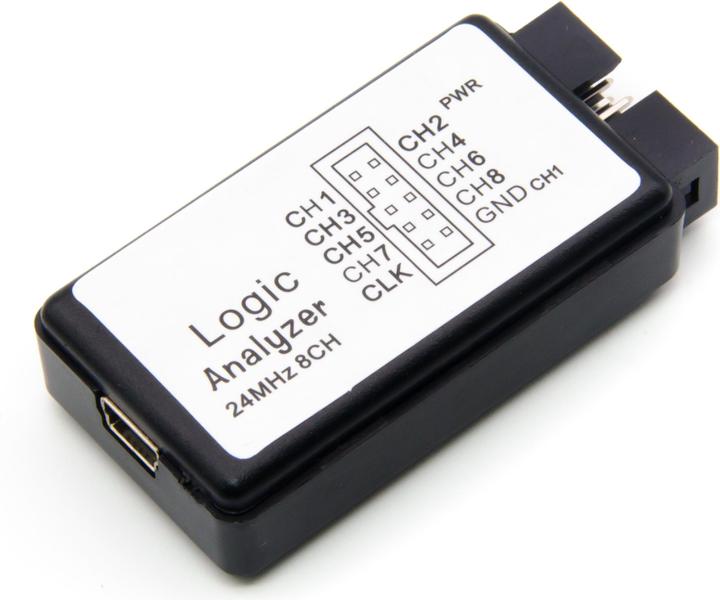

Purecrea USB Logic Analyzer 8 Channel 24MHz

2Ratings
BrandMore from Purecrea
Delivered Wed, 8.4.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

The USB Logic Analyzer from Purecrea is a versatile development board that is ideal for debugging and analyzing digital signals. With eight channels and a maximum sampling rate of 24 MHz, this device allows for precise capture and analysis of protocols such as I2C, UART, SPI, CAN, Midi, and 1Wire. The use of PulseView as software provides a user-friendly interface for visualizing the captured data. Its compact design and lightweight make the Logic Analyzer a practical tool for developers and technicians seeking a reliable solution for their projects. The analyzer is compatible with a supply voltage of 2V to 5.5V and offers a high impedance of 1M Ohm, making it a flexible tool for various applications.

  • Maximum sampling rate of 24 MHz with adjustable values between 25 kHz and 24 MHz
  • Supports a variety of protocols such as I2C, UART, SPI, CAN, Midi, and 1Wire
  • High impedance of 1M Ohm for versatile applications
  • Compatible with PulseView software for easy data visualization
  • Compact dimensions and lightweight design for easy handling.

Key specifications

Clock speed
24 MHz

General information

Item number
38737309
Manufacturer
Purecrea
Category
Single board computer kits
Release date
21.9.2023
Sales rank in Category Single board computer kits
171 of 3062

Development board properties

Clock speed
24 MHz

Power supply

Operating voltage
5.50 V

Connections

Number of I/O
8

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
95.84 kg
Climate contribution
CHF 1.49

Scope of delivery

Scope of delivery
10x Dupont cable F/F 20cm, 1x USB cable, 1x USB Logic Analyser 8 channel 24 MHz

Product dimensions

Length
28 mm
Width
56 mm
Height
14 mm
Weight
55 g
