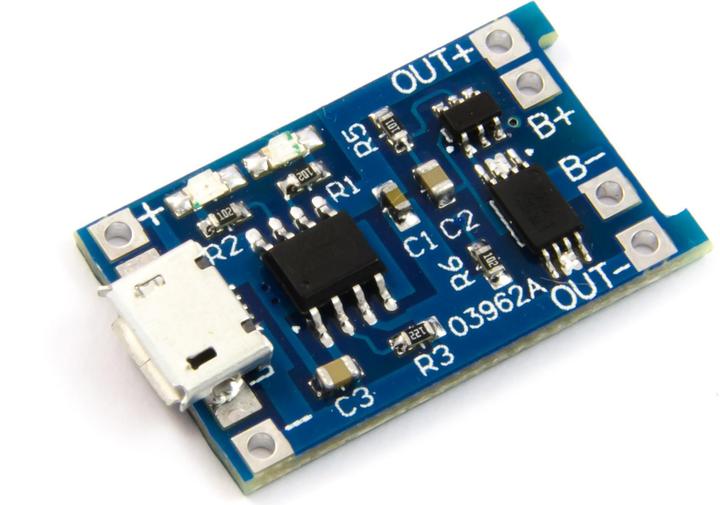

Purecrea TP4056 Lithium LiPo Battery Charger Micro USB 5V 1A

3Ratings
BrandMore from Purecrea
Delivered between Tue, 15.7. and Wed, 16.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

With this LiPo charger, you can safely charge and discharge 1s (1 cell) LiPo batteries like 18650. The built-in TP4056 chip protects the battery against overcharging and deep discharging. The resistor R3 is used to set the charging current. By default, a 1.2kOhm resistor is installed, which limits the charging current to 1000mA. If you have small batteries that should not be charged with 1A, typically batteries under 1000mAh, the resistor R3 needs to be replaced with a higher resistance value.

Technical Details:
Charging Controller Chip: TP4056A
Protection Chip: DW01A
Connection: Micro USB or via soldering connection
Charging Type: Linear
Operating Temperature: -10 degrees to +85 degrees
Default Charging Current: 1A (R3=1.2kOhm)
Max Discharge Current: 3A
Charging Precision: 1.5%
Input Voltage: 4.5V to 5.5V DC
Full Charge Voltage: 4.2V
Deep Discharge Cut-off Voltage: 2.5V
LED Indicator Blue: Fully Charged
LED Indicator Red: Charging
Weight: 2g
Dimensions: 29 x 17 x 4.1mm

Delivery Includes:
1x TP4056 Lithium LiPo Battery Charging Module Micro USB 5V 1A.
