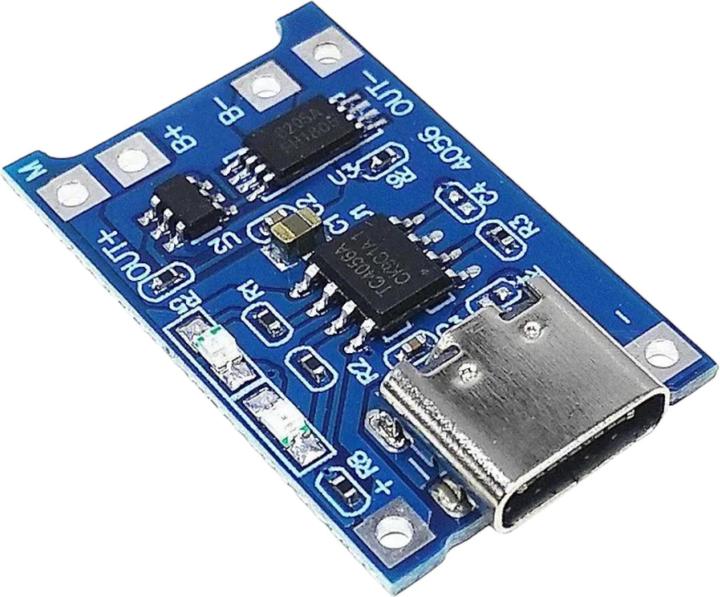

Purecrea TP4056 Lithium LiPo battery Battery charging module USB C 5V 1A

With this LiPo charger, you can safely charge and discharge 1s (1 cell) LiPo batteries like 18650. The integrated TP4056 chip protects the battery from overcharging and deep discharging. The charging current is set using the resistor R3. By default, a 1.2 kOhm resistor is installed, limiting the charging current to 1000 mA. If you have small batteries that cannot be charged at 1 A, typically batteries under 1000 mAh, the resistor R3 must be replaced with a resistor of higher value.

Connection TC4056:
Out+ => Load+
Out- => Load-
B+ => Battery+
B- => Battery-

Technical specifications:
Charging controller chip: TP4056A
Protection chip: DW01A
Connection: USB C or via solder connection
Charging type: Linear
Operating temperature: -10 degrees to +85 degrees
Standard charging current: 1 A (R3=1.2 kOhm)
Maximum discharge current: 3 A
Charging accuracy: 1.5%
Input voltage: 4.5 V to 5.5 V DC
Full charge voltage: 4.2 V
Blue LED indicator: Fully charged
Red LED indicator: Charging in progress
Dimensions: 29 x 17 x 4.1 mm
Weight: 3 g

Delivery includes:
1x TP4056 Lithium LiPo battery charging module USB C 5 V 1 A.
