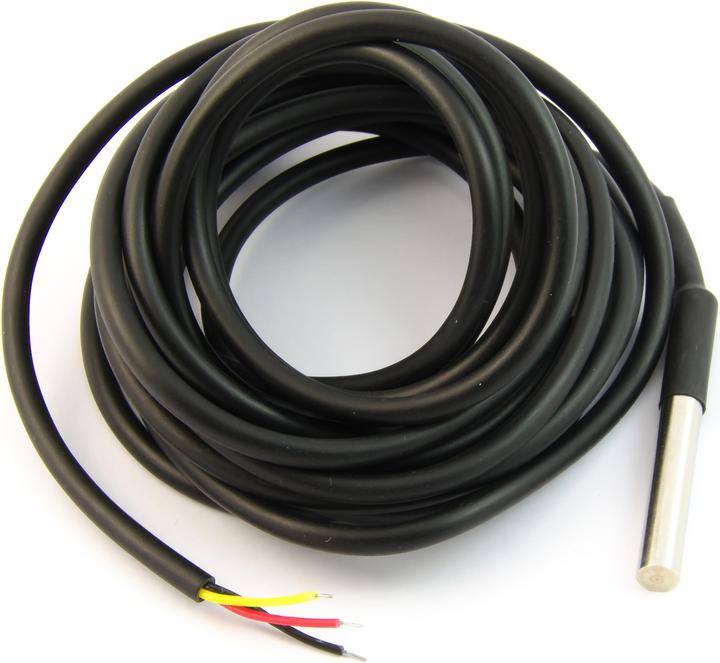

Purecrea Temperature sensor waterproof (DS18B20) 3m

This waterproof temperature sensor features a DS18B20 sensor chip with 1-Wire communication. The DS18B20 is a digital temperature sensor housed in a TO92 casing. The sensor is very accurate and reliable, as it has been factory calibrated. For interfacing with an Arduino, you can use the DallasTemperature library. To read the DS18B20, you only need one input on your Arduino. Multiple sensors can also be connected to a single input. To operate the sensor, you will need a 4.7 kOhm resistor, which should be connected between VCC and Data. For example, if you have 5 sensors on the same input, you only need one resistor.

Important: A 4.7 kOhm resistor must be connected between the red and yellow wires.

Technical details:
Operating voltage: 3.0 - 5.5 VDC
Accuracy (-10°C - +85°C): ±0.5°C
Measuring range: –55°C to +125°C
Max. allowable temperature of the probe: 100°C
Probe diameter: 5.9 mm
Connection cables: VCC (red), GND (black), Data (yellow)
Length of connection cable: 3 m
Weight: 64 g

Included in delivery:
1x waterproof temperature sensor (DS18B20) 3 m.
