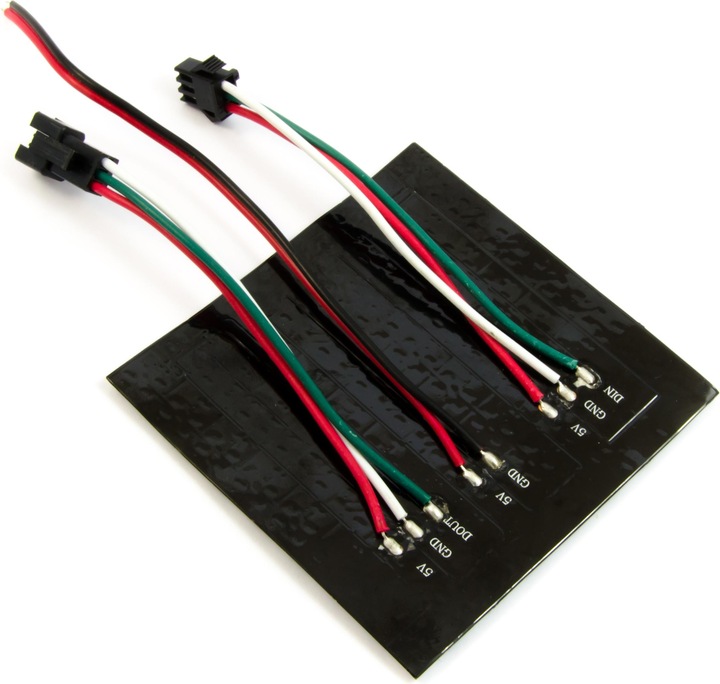

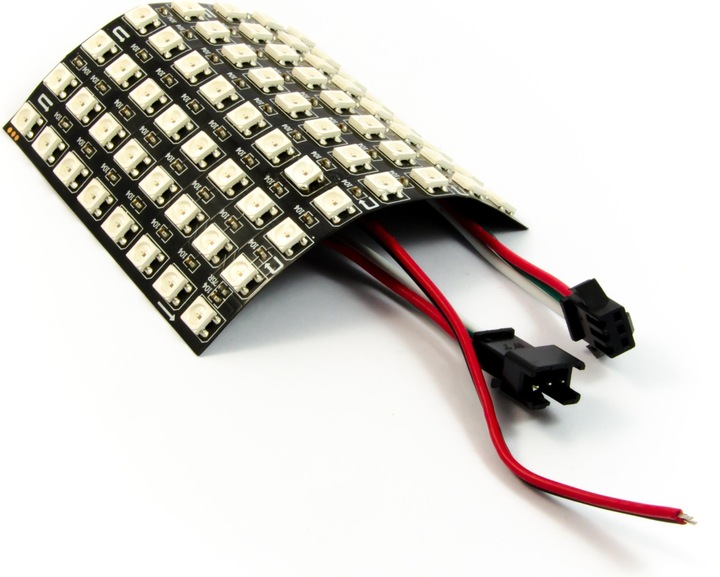

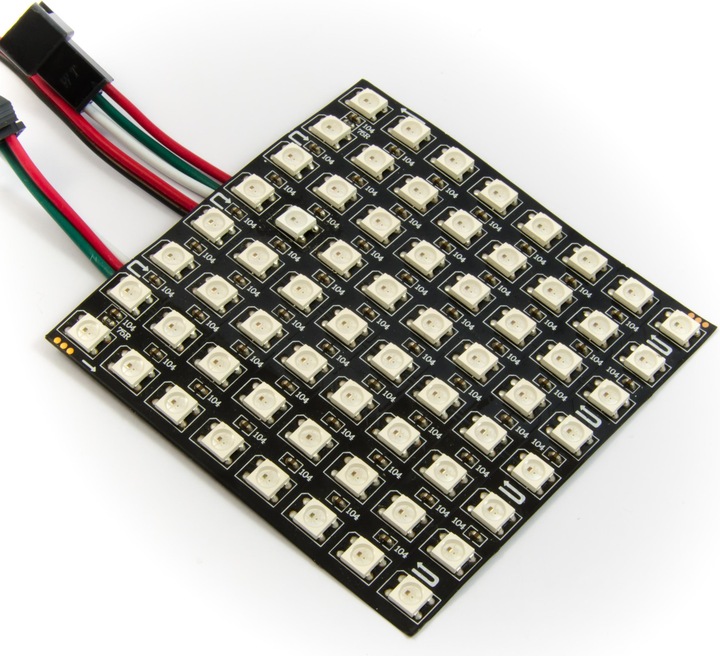

Purecrea NeoPixel FlexMatrix 8x8 - 64 WS2812B RGB LED

This NeoPixel RGB LED matrix has 64 small RGB LEDs (4.9x4.9mm). The LEDs are already mounted on a flexible PCB board. Several NeoPixels can be connected one after the other and each LED can be easily controlled via a microcontroller, e.g. Arduino UNO, Mega, Nano etc. via an output. There are also many programming examples, just search for NeoPixel or Fastled. We recommend to connect an additional 3300 µF capacitor between GND and 5V to guarantee a stable voltage supply and thus also the life span of the LED can be reached.
Info: If you want to use the WS2812B matrix with a 3.3V microcontroller like the ESP8266 or ESP32 you need a logic level converter.

Technical details:
Operating voltage: 5 V DC
Current consumption: 20mA per colour and LED (max = 20mA*3*64=3840mA)
Driver chip: 64x WS2812B
LED: 5050 RGB
Colour: White / Black
Size: 80 x 80 x 4mm
Weight: 19g

Scope of delivery:
1x NeoPixel FlexMatrix 8x8 - 64 WS2812B RGB LED.
