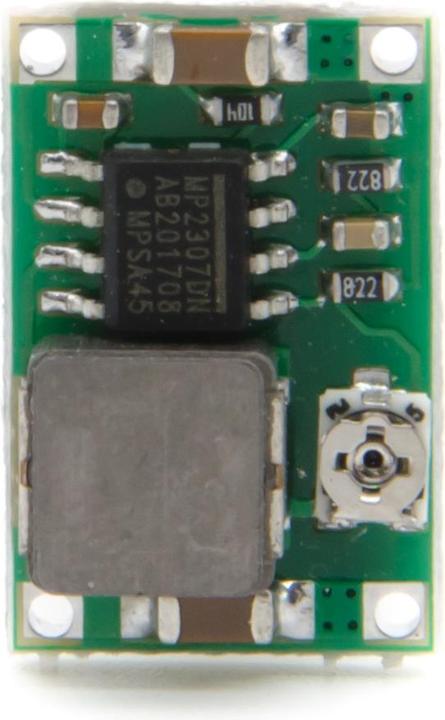

Purecrea MP2307 mini 2A switching regulator DC-DC step-down converter

1Ratings
BrandMore from Purecrea
Delivered Wed, 8.4.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

The MP2307 is an adjustable voltage regulator that converts a higher input voltage into a lower adjustable output voltage. The advantage of this switching regulator is that it has a very high efficiency while being very compact in size.

Note: The input voltage must be 1.5 V higher than the output voltage! The chip features built-in over-temperature protection.

Technical Details:
Input Voltage: 4.5 V – 23 V DC
Output Voltage: 1 V - 17 V DC (adjustable via potentiometer)
Output Current: 1.8 A normal / 3 A max peak
Efficiency: up to 95 %
Output Ripple: <30 mV
Switching Frequency: 340 kHz fixed
Operating Temperature: -40 °C to +85 °C
Size: 17 x 11 x 3.8 mm
Weight: 2 g

Delivery Includes:
1x MP2307 mini 2A switching regulator DC-DC step-down converter.

Key specifications

Development board type
Kit

General information

Item number
32964696
Manufacturer
Purecrea
Category
Single board computer kits
Release date
5.5.2023
Sales rank in Category Single board computer kits
331 of 3062

Development board properties

Development board type
Kit

Power supply

Operating voltage
4.50 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
95.84 kg
Climate contribution
CHF 0.40

Scope of delivery

Scope of delivery
1x MP2307 mini 2A switching regulator DC-DC step-down converter

Product dimensions

Weight
2 g

30-day right of return
24 Months Warranty (Bring-in)
