Purecrea MAX98357 I2S 3W DAC Amplifier

Ratings
BrandMore from Purecrea
Delivered between Fri, 18.7. and Mon, 21.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

The MAX98357 I2S 3W DAC Amplifier Module converts a digital I2S signal into a high-quality analog audio signal while simultaneously amplifying it. Thanks to its compatibility with 3.3V and 5V I2S signals, it can be easily connected to devices such as Arduino, ESP32, or Raspberry Pi. The available gain levels range from 3dB to 15dB, and with a power output of up to 3.2W at 4Ω, it ensures strong and distortion-free sound reproduction.

Features:
Standard I2S input, compatible with 3.3V and 5V
Up to 3.2W power output
Selectable gain levels from 3dB to 15dB

Technical Details:
Chip: MAX98357
Input: I2S 8Khz-96Khz
Amplifier Class: Class D 3dB/6dB/9dB/12dB/15
Dimensions: 17.7 x 18.8 x 2.5mm
Weight: 3g

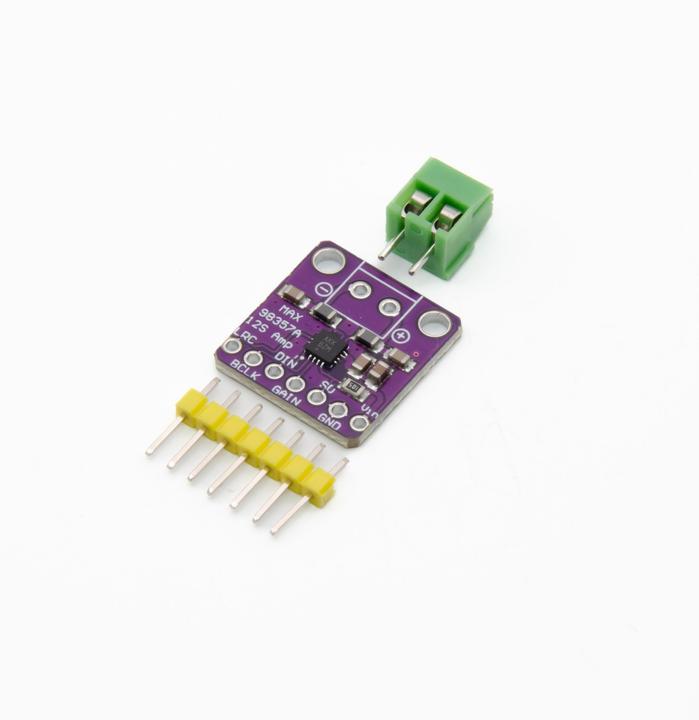

Included in the package:
1x MAX98357 I2S 3W DAC Amplifier
1x 7-pin header
1x 2-pin screw terminal.

Key specifications

Item number
36225641

General information

Manufacturer
Purecrea
Category
Development boards + Kits
Release date
13.6.2023

Power supply

Operating voltage
5 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 2pin screw terminal, 1x 7pin pin header, 1x MAX98357 I2S 3W DAC Amplifier

Product dimensions

Length
17.70 mm
Width
18.80 mm
Height
2.50 mm
Weight
3 g
