Purecrea LM2596 DC-DC Step-Down Converter Module with Display

Ratings
BrandMore from Purecrea
Delivered between Wed, 2.7. and Thu, 3.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

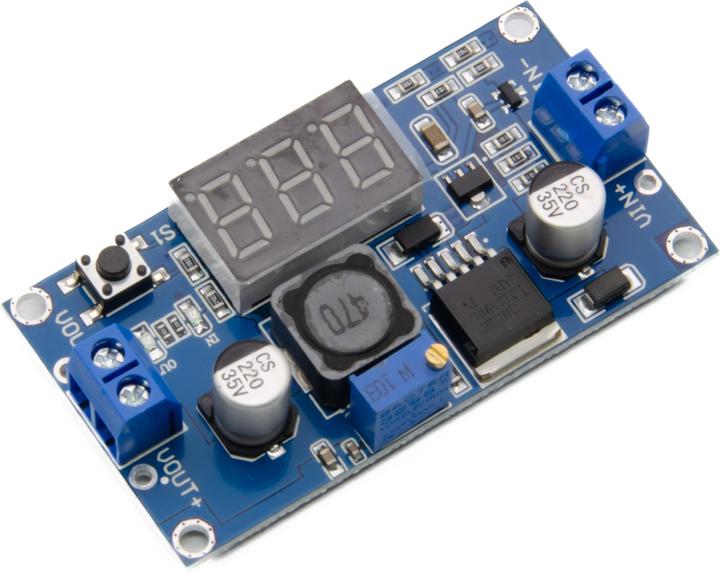

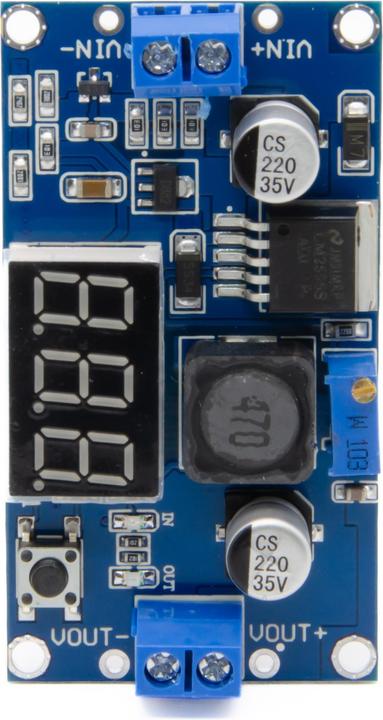

The LM2596 is an adjustable voltage regulator that converts a higher input voltage into a lower adjustable output voltage. The input voltage should always be about 3V above the desired output voltage. The output voltage can be adjusted using the potentiometer. The current input or output voltage is displayed on the LCD screen. Switching between the input and output voltage is done using the right button on the board.

Note: The module is equipped with a precision potentiometer, so you may need to turn it 5-10 times to set the voltage.

Technical Details:
Type: LM 2596 DC-DC Step-Down
Input Voltage: 4.5V to 40V DC
Output Voltage: Adjustable from 1.25V to 37V
Rated Current: 2A (3A max)
Efficiency: Up to 90%
Operating Temperature: -40°C to +85°C
Thermal Shutdown Function
Reverse Polarity Protection
Mounting Holes: 4x Diameter 3.2mm
Size: 66 x 36 x 14mm
Weight: 22g

Package Includes:
1x LM2596 DC-DC Step-Down Converter Module with Display.

Key specifications

Development board type
Kit
Item number
36359713

General information

Manufacturer
Purecrea
Category
Development boards + Kits
Release date
15.6.2023
Sales rank in Category Development boards + Kits
245 of 2723

Development board properties

Development board type
Kit

Power supply

Operating voltage
40 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x LM2596 DC-DC step-down converter module with display

Product dimensions

Length
36 mm
Width
66 mm
Height
14 mm
Weight
22 g
