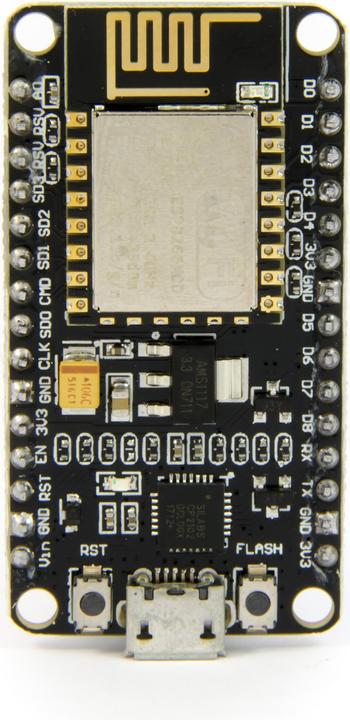

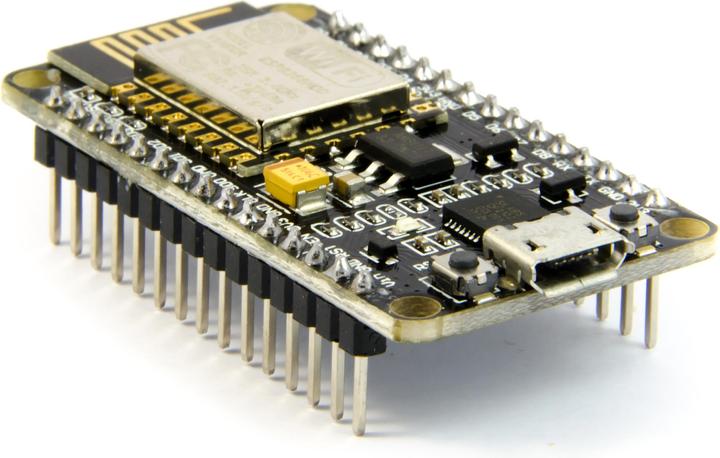

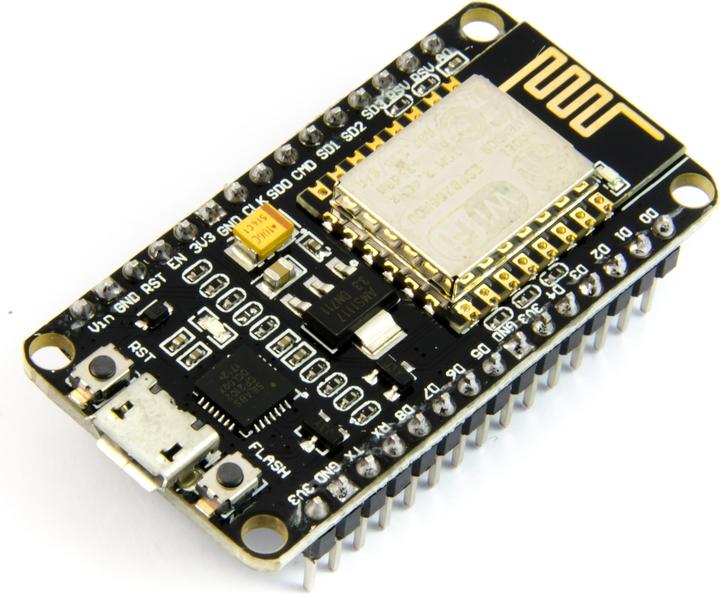

Purecrea ESP8266 NodeMCU V1 compatible development board

This small microcontroller is very powerful and features a Wi-Fi radio module. The module is compatible with the Arduino IDE and can be programmed immediately. With the ESP8266, you can easily connect your projects to the internet. The board is often used for Internet of Things (IoT) applications. For example, you can easily connect your data logger to the internet and log the data to a cloud. The NodeMcu has a micro-USB port for programming and power supply. Since the ESP8266 is a pure 3.3V controller, all inputs and outputs must be operated at 3.3V. If you still want to connect or control something with 5V, you will need to use a logic level converter.

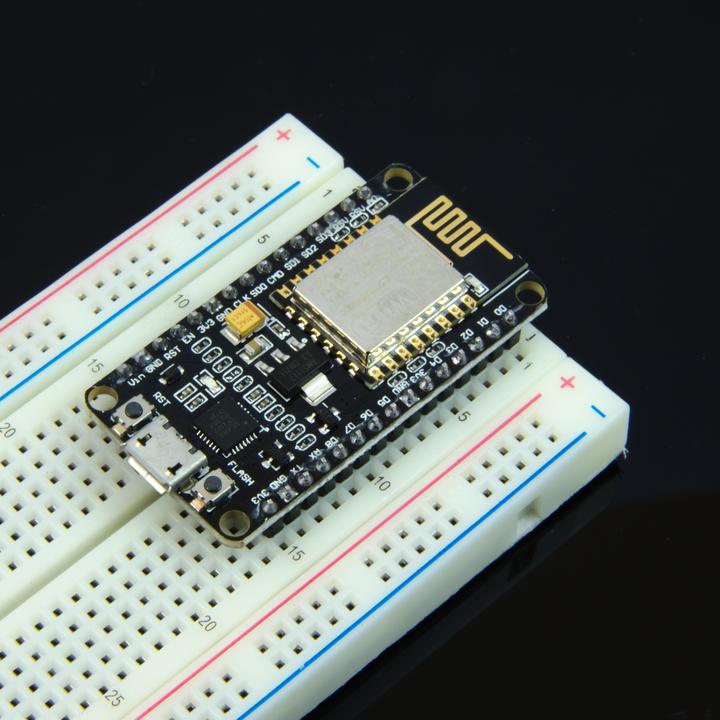

This board can be plugged into a half-size breadboard, and there is still enough space on both sides to insert Dupont cables. Compared to the ESP8266 NodeMCU V3, the V1 version is smaller and has a better USB-UART driver chip.

Technical details:
Controller: ESP8266
USB-UART converter: CP2104
Connection: Micro-USB
CPU: 80 MHz, 32Bit RISC
RAM: 96kB
Flash: 4 MB
WiFi (Client, Access Point Mode)
10 digital I/O pins, 1 ADC (10Bit)
Integrated Wi-Fi antenna
Size: 50 x 26 x 13 mm
Weight: 9 g

Delivery includes:
1x ESP8266 NodeMCU V1 compatible development board.
