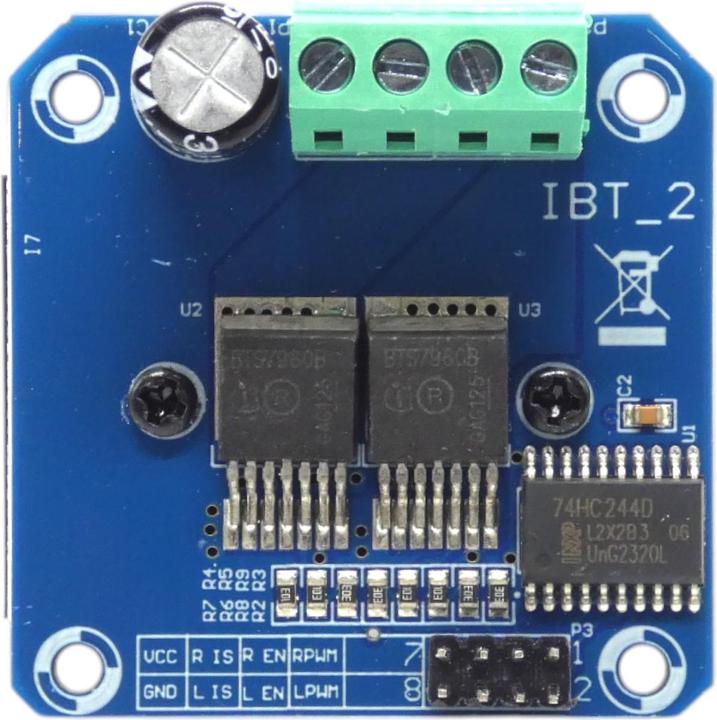

Purecrea Double BTS7960 43A Motor Treiber H-Brücke

The Double BTS7960 Motor Driver H-Bridge is a powerful module specifically designed for high current applications up to 43 Amperes. Equipped with Infineon BTS7960 chips, it offers robust H-Bridge functionality for motor control. The module is particularly safe and reliable due to effective isolation between the microcontroller and the motor driver. Additionally, the integrated thermal overcurrent protection feature ensures maximum safety. It can be easily integrated into your projects with minimal effort and offers intuitive operation. With the ability to precisely control the direction and speed of the motor, this module is ideal for various robotics and automation applications.

Features:
The module uses two BTS7960 chips that support a maximum current of 43 Amperes.
Control is achieved through effective isolation between the microcontroller and the motor driver, enhancing system safety.
An on-board 5V power indicator shows operational readiness.
The module allows for soldering heat sinks for additional cooling.
The voltage of the motor drive output is displayed directly.
With only four connections (GND, 5V, PWM1, PWM2), integration is particularly simple.
It supports PWM signals with frequencies of up to 25 kHz, enabling precise control.
Operation is possible with a supply voltage between 5.5V and 27V.

Technical Specifications:
Manufacturer: purecrea
Chip: BTS7960
Maximum short-term current: up to 43 A
Continuous current: 20-30 A
PWM frequency: 2x PWM up to 25 kHz
Operating voltage: 5.5 V to 27 V

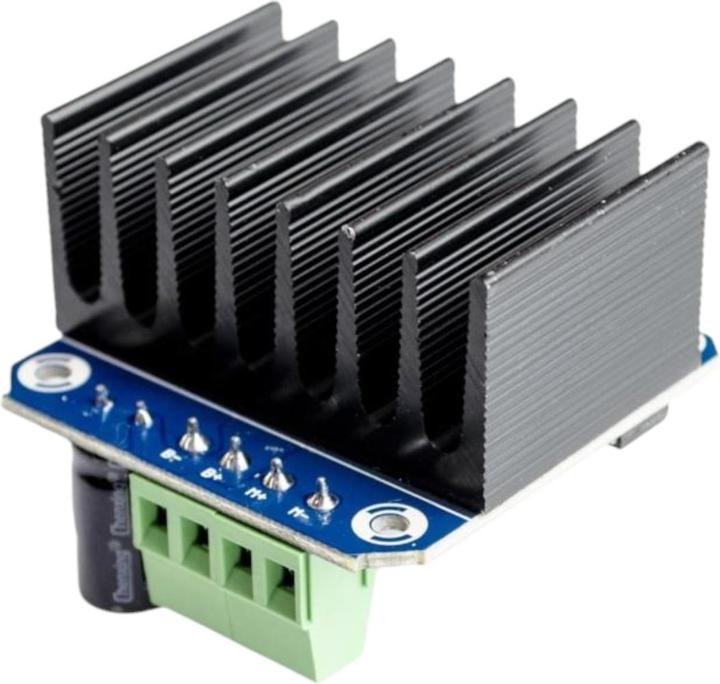

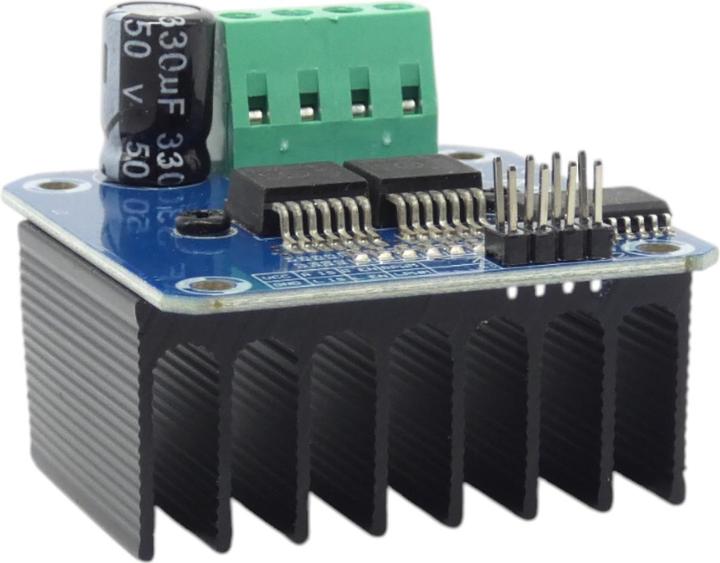

Cooling: Aluminum fin heat sink
Dimensions: 50 x 50 x 40 mm
Weight: 54 g

Delivery includes:
1 x Double BTS7960 43 A Motor Driver H-Bridge Module.
