Product details

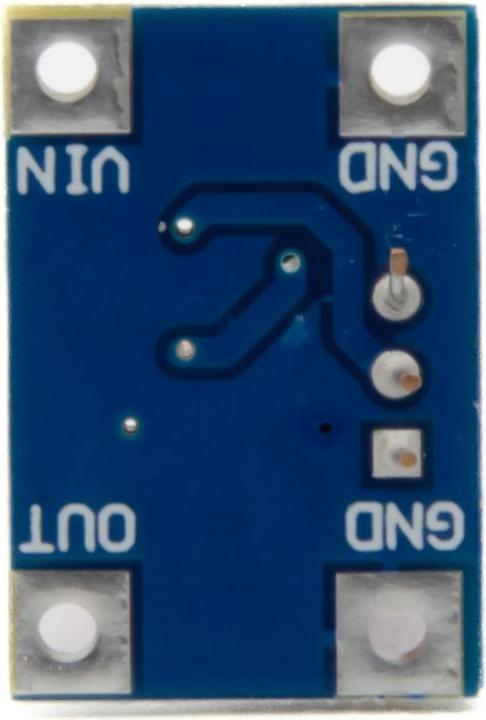

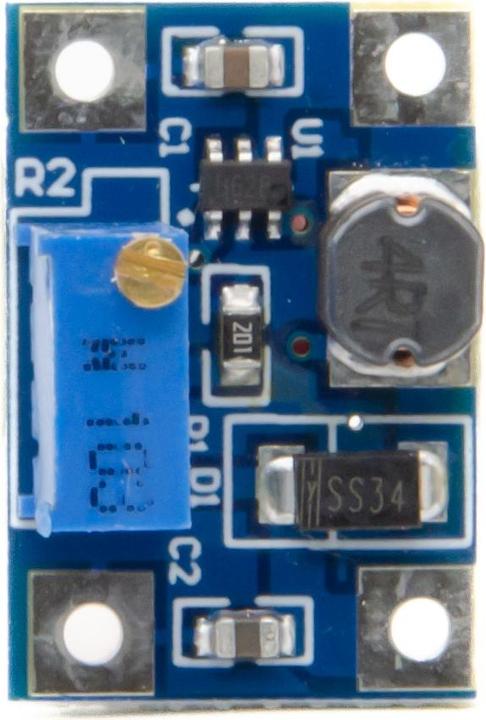

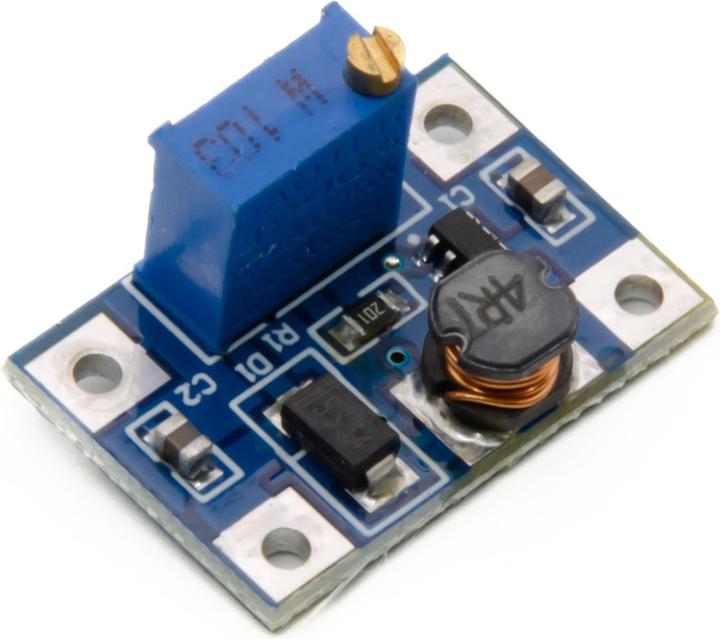

This is a step-up voltage converter. The module converts input voltages of 2-24V into 2-28V output voltage with max. 2A continuous output current. The output voltage is regulated with a potentiometer. A SX1308 chip and 100mΩ resistor are built in. The efficiency is 95% and the frequency is 1.2MHz.

Info: If the input voltage is higher than the output voltage, the input voltage will be applied to the output. The module has a precision potentiometer, so you may have to turn it 5-10 times to adjust the voltage.

Features:
DC-DC step-up boost converter
2-24V input voltage
2-28V output voltage
1.5A Continuous output current
2A Max current short term
95% efficiency

Technical details
Input voltage: 2-24V DC
Output voltage: 2-28V DC
Output current: 1.5A
Current short-time: 2A
Chip: SX1308
Efficiency: 95%
Frequency: 1.2MHz
Resistance: 100mΩ
Dimension: 23 x 15 x 12mm
Weight: 5g

Scope of delivery:
1x DC-DC 1.5A Step-Up Boost Converter.

Key specifications

Clock speed
1.20 MHz

General information

Item number
32964682
Manufacturer
Purecrea
Category
Single board computer kits
Release date
5.5.2023
Sales rank in Category Single board computer kits
150 of 3062

Development board properties

Clock speed
1.20 MHz

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
95.84 kg
Climate contribution
CHF 0.65

Scope of delivery

Scope of delivery
1x DC-DC 1.5A Step-Up Boost Converter

Product dimensions

Length
12 mm
Width
23 mm
Height
15 mm
Weight
5 g
