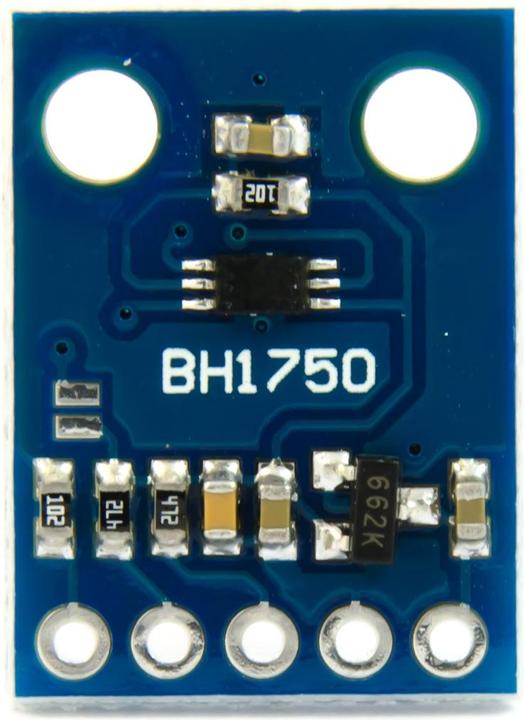

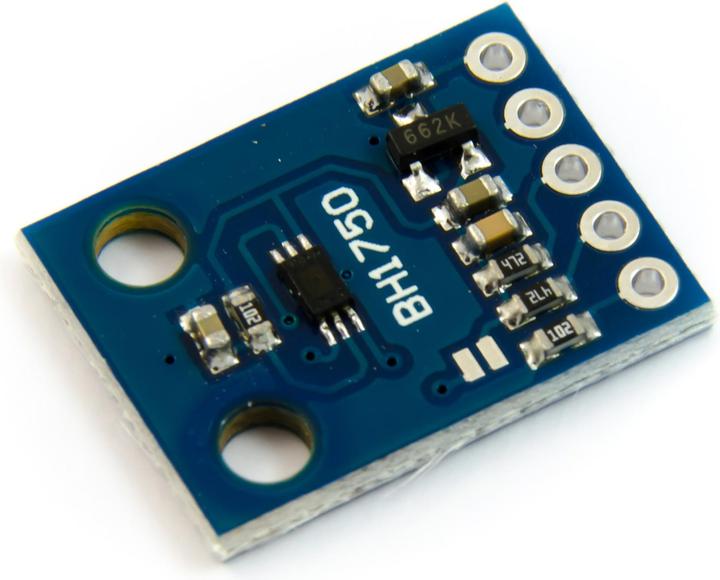

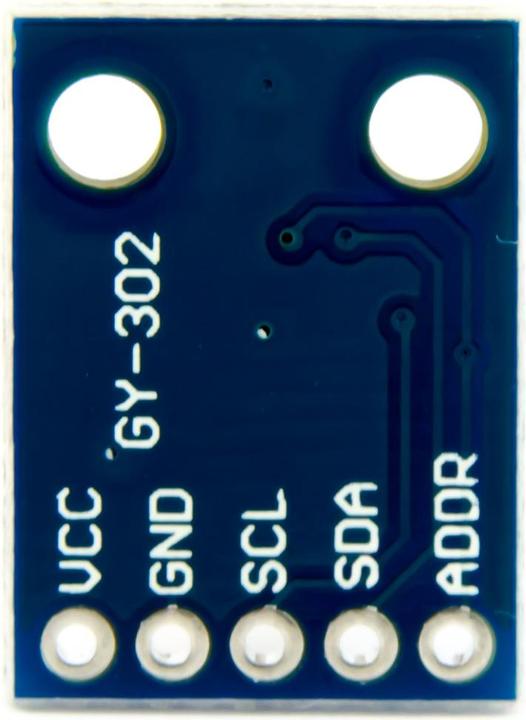

Purecrea BH1750 GY-302 Digital Light Sensor / Light Intensity Sensor with I2C
More than 10 pieces in stock at third-party supplier
Product details
The BH1750 is a light module or light sensor that allows you to digitally measure brightness in Lux. With the I2C bus, the sensor can communicate with microprocessors. Thanks to I2C, only two outputs from your Arduino are needed to communicate with the sensor.
Technical details:
Operating voltage: 3V to 5V
Resolution: 16 Bit
Measurement range: 0 – 54612 Lux
I2C Address ADDR=GND: 0x23
I2C Address ADDR=3.3-5V: 0x5C
Pitch: RM 2.54 mm
Diameter of mounting holes: 3 mm
Size: 18.5 x 13.5 x 2.3 mm
Total weight: 1.5 g
Included in delivery:

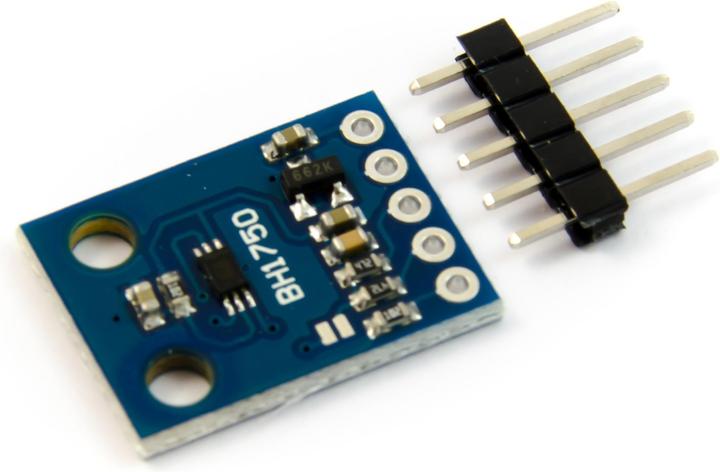

1x BH1750 module
1x Pin header (5-pin).
Item number | 36359725 |
Manufacturer | Purecrea |
Category | Development boards + Kits |
Release date | 15.6.2023 |
Operating voltage | 5 V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x BH1750 module, 1x pin header (5 poles) |
Length | 13.50 mm |
Width | 18.50 mm |
Height | 2.30 mm |
Weight | 1.50 g |
