Purecrea 433MHz RF radio module set RX470-4 / WL102-341

3Ratings
BrandMore from Purecrea
Delivered between Tue, 8.7. and Wed, 9.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

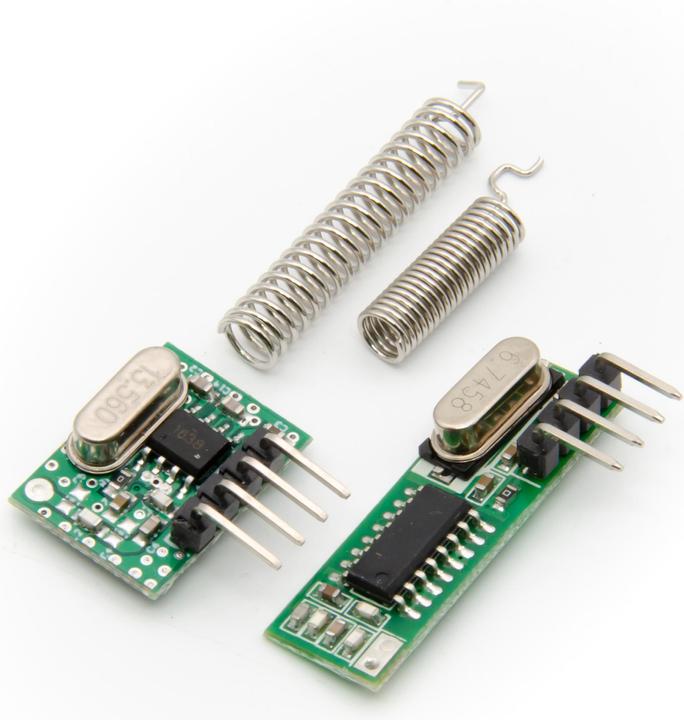

With these 433MHz RF modules, you can set up simple wireless communication with an Arduino, for example, to send temperature readings from a sensor to a main station. The set includes everything you need. You just need to solder the short antenna to the RX470-4 receiver and the long antenna to the WL102-341 transmitter.

Technical Details:

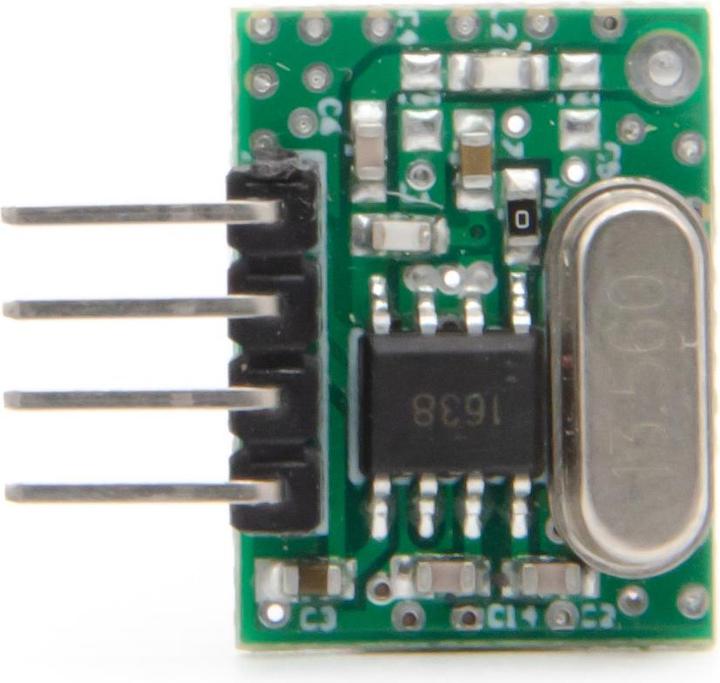

TX Transmitter
Type: WL102-341
Antenna: Short Antenna
Operating Voltage: 2-3.6V DC
Quiescent Current: 1uA
RF Frequency: 433.92 MHz
Dimensions: 16 x 12 x 6mm

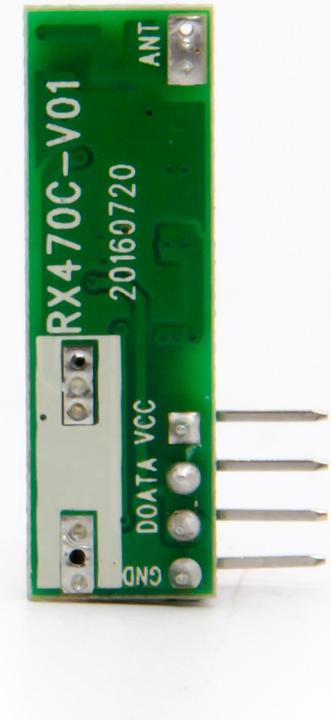

RX Receiver Technical Details:
Type: RX470-4
Antenna: Long Antenna
Operating Voltage: 2.2-5V DC
Quiescent Current: 1uA
Operating Current: ≤2.1mA (5V DC)
RF Frequency: 433.92 MHz
Transmission Rates: 2KHz to 10KHz
Dimensions: 30 x 9 x 6mm

Included in the package:
1x Receiver RX470-4
1x Short Antenna for Receiver
1x Transmitter WL102-341
1x Long Antenna for Transmitter.

Key specifications

Clock speed
0.01 MHz
Item number
32964698

General information

Manufacturer
Purecrea
Category
Development boards + Kits
Release date
5.5.2023

Development board properties

Clock speed
0.01 MHz

Power supply

Operating voltage
3.60 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x long antenna for transmitter, 1x RX470-4 receiver, 1x short antenna for receiver, 1x transmitter WL102-341

Product dimensions

Length
30 mm
Width
12 mm
Height
6 mm
