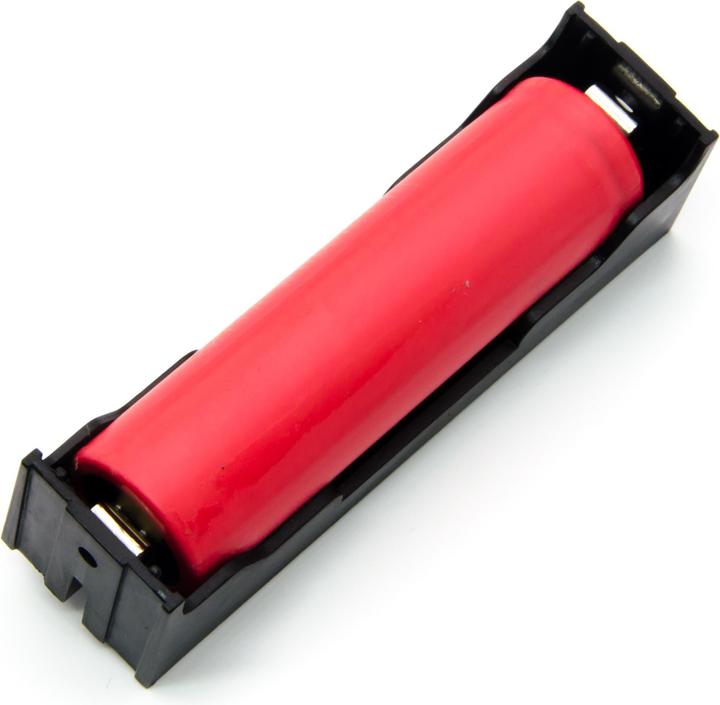

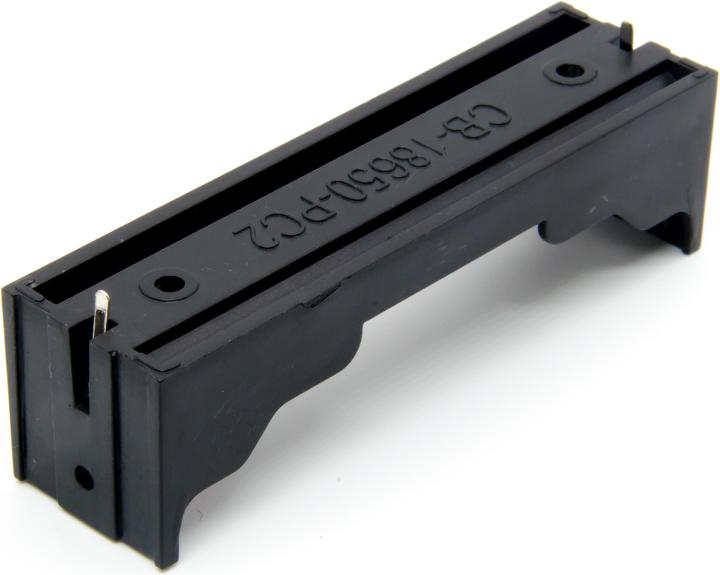

Purecrea 1-compartment 18650 battery compartment / battery holder

This single battery holder is suitable for 18650 Li-Ion / LiPo batteries without protection circuitry. This LiPo battery holder features pin contacts on the bottom, allowing you to solder the battery directly onto a printed circuit board (PCB). Wires or strands can also be soldered directly to the contacts, which has the advantage of allowing you to connect the 18650 LiPo batteries in any series or parallel configuration.

Warning: It is important to note that a short circuit or incorrect connection of a LiPo battery can lead to destruction or fire.

Technical details:
Color: Black
Type: CB-18650-PC2
Compatible battery type: 18650 without protection circuitry
Distance between relaxed contact springs: 62.8 mm
Minimum battery length: 65 mm
Maximum battery length: 66 mm
Dimensions: 77.5 x 21 x 22.3 mm
Weight: 8 g

Delivery includes:
1x single 18650 battery holder.
