ProfiCNC Pixhawk Cube Kore

The ProfiCNC Cube Kore Board enables the full functionality of the Pixhawk Cubes.

Technical Specifications:

• Up to 12-cell Lithium battery (50.4V)
• 140A current measurement with 280A peak current
• Power and signals for ESC are located in the corners
• Integrated voltage and current measurement
• Redundant power management for flight-critical processes
• Power and error LEDs
• Integrated buzzer
• Provides the full functionality of the ProfiCNC Pixhawk Cubes
• Easily adjustable PWM level (3.3V & 5V)
• Connector compatible with the standard ProfiCNC Carrier Board
• Connector ports for debugging the IO and FMU processors

Standard Cables:

• 4-pin JST GH
• 6-pin JST GH

Power Cables:

• 4-pin Clik-Mate 1.25mm (for 5V charging current)
• 5-pin Clik-Mate 1.25mm (for 12V charging current)
• 6-pin Clik-Mate 1.25mm (for battery charging current)

Scope of Delivery:

• ProfiCNC Cube

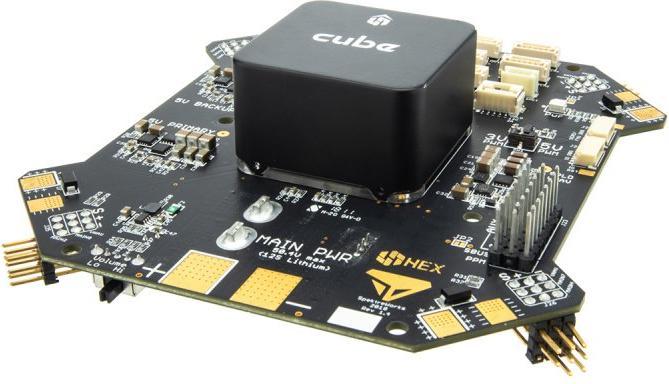

The depicted ProfiCNC Pixhawk Cube is not included in the delivery but can be added optionally.
