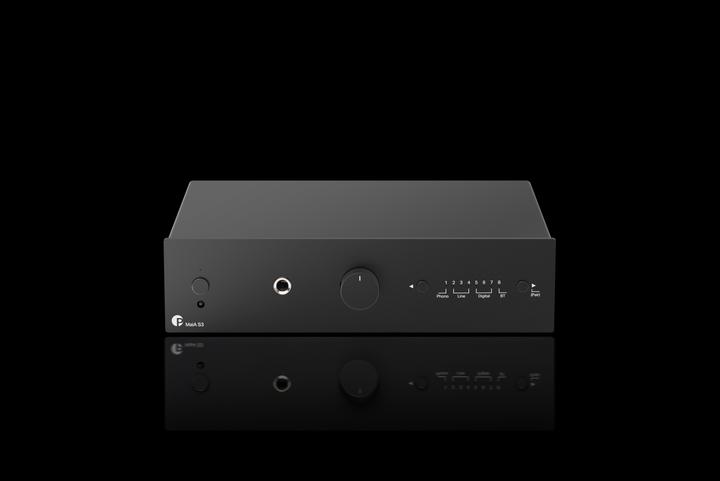

The MaiA S3 is the all-in-one solution for your HiFi system. Not only has the circuit design been revised, but it also visually integrates into the new S3 line. Thanks to the new dimensions, we were able to improve the circuit board layout in terms of electromagnetic interference. With 8 inputs, you are equipped for any type of source device.
Amplifier power: 2x 23W / 40W @ 8 / 4 Ohm (1% THD)
Frequency response 20Hz - 20kHz: <-0.5dB @ 4 Ohm
Channel separation: -69dB at 10kHz
Signal-to-noise ratio: 97dB (101dB 'A' weighted) @ 4 Ohm
THD: < 0.04% at 10W / 4 Ohm
Headphone output: 6.3 mm jack (16 – 600 Ohm)
Headphone power: 2x 75mW @ 32 Ohm (1% THD)
Analog inputs: 3x RCA, 1x Phono MM (RCA)
Digital inputs: RCA coax, 2 x Toslink, Bluetooth 5.0 (aptX)
Variable output: 1x RCA
DAC: Cirrus Logic CS4344 24bit/192kHz
Speaker connection: 4mm Ø banana plugs, forked cable lugs, or bare wire ends
Power supply: 20V/3A DC; 100 - 240V, 50/60Hz
Standby power consumption: < 0.5 Watt
Dimensions W x H x D (mm): 206 x 55 x 153 (176 with sockets)
Weight: 1070 g without power supply.
