Powerbox Systems v-regulator 5.3v voltage regulator bec

Ratings
Delivered between Wed, 16.7. and Sat, 19.7.
Only 2 pieces in stock at supplier
Free shipping starting at 50.–

Product details

The V-Regulator is a compact, high-performance voltage regulator designed for use when standard servos are to be powered by a lithium-ion battery. This allows for smaller to medium-sized aircraft models and helicopters to be equipped or retrofitted with modern battery technology. The pulse line is passed through from the input to the output, enabling a single 6V servo to operate in a model with a high-voltage system. Another application case is electronic ignitions, which have a limited maximum supply voltage. The regulated output voltage ensures consistent performance of the servos, while servo back currents are effectively filtered out.

Features:

  • Available with regulated output voltage of 5.3V or 6.0V
  • Continuous current up to 3A - depending on cooling
  • Peak current up to 20A (< 10s)
  • Large machined aluminum heat sink
  • Excellent for ignitions, small helicopters, and smaller models with up to 8 servos
  • Suitable for all applications that can operate with a maximum voltage of 5.3V or 6.0V
  • Extremely slim design for small fuselages

Technical Data:

  • Operating voltage: 4.0V - 9.0V
  • Continuous current capacity max. 3A, Peak max. 20A
  • Dropout voltage: 0.10V
  • Output voltage: 5.3V
  • Total servo outputs: 1
  • Weight: 10g
  • Temperature range: -30°C to +85°C.

Key specifications

Item number
23314668

General information

Manufacturer
Powerbox Systems
Category
RC controllers + receivers
Manufacturer no.
5515
Release date
2.12.2022

Colour

Colour
Black, Blue, Red, Silver, White

Material

Material group
Metal

Receiver Features

Operating voltage
9 V

Voluntary climate contribution

CO₂-Emission
Climate contribution

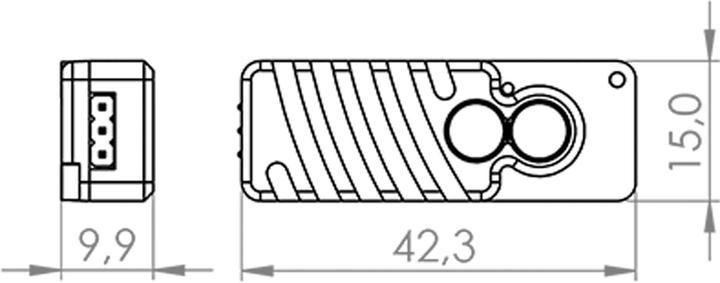

Product dimensions

Length
4.23 cm
Width
1.50 cm
Height
0.99 cm
Weight
10 g
