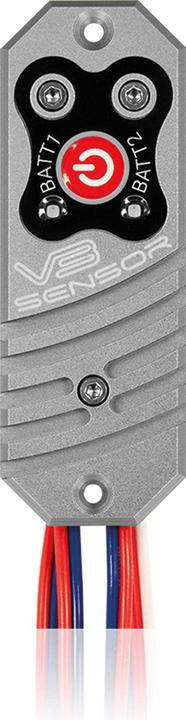

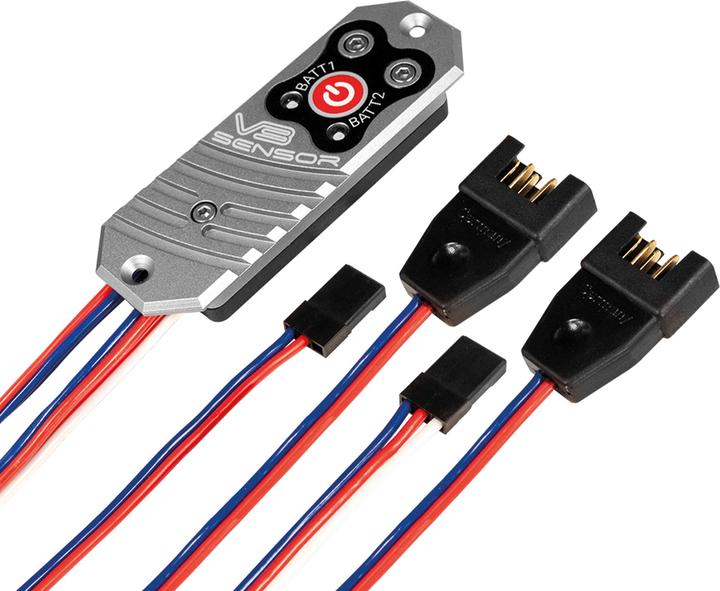

Powerbox Systems Sensor V3 6.0 V/.8 V - MPX/JR

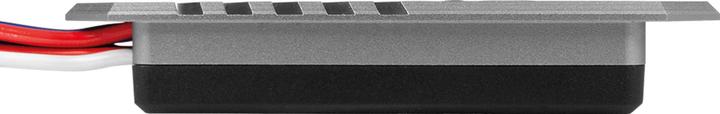

The PowerBox Sensor V3 is the third generation of the globally renowned PowerBox Sensor. Due to its compact design and versatile applications, the PowerBox Sensor has been the standard for small to medium-sized models for almost 20 years. The Sensor V3 has been significantly reduced in size thanks to the use of state-of-the-art components. The depth has been halved from 22 mm to 11 mm. Nevertheless, the Sensor V3 fits perfectly into the cutout of its predecessor! The use of a high-quality, machined, and anodized aluminum housing has greatly increased the usable cooling capacity – the PowerBox Sensor V3 can deliver approximately 35% more continuous current! The short-term load capacity has even doubled – for several seconds, the Sensor V3 can handle over 20 A! For power supply, you can choose between four different battery types: LiPo, LiIon, LiFePo, and NiMh. Ultra-bright RGB LEDs are used for battery voltage indication, signaling the charge status of the batteries with different colors. For CORE customers, there is an additional special feature: both battery voltages can be displayed directly on the transmitter via telemetry!

Features:
• High-performance battery switch
• Very lightweight and compact design
• Doubly regulated output voltage
• Redundant switch and regulator design
• Adjustable output voltage of 6.0 V or 7.8 V
• Separate voltage display for each battery via RGB LEDs
• Telemetry support for CORE
• Supports 4 battery types: 2s LiPo, 2s LiIon, 2s LiFePo, and 5s NiMH
• Regulator monitoring
• Suppression of servo back currents.
