Powerbox Systems PBS-Vario

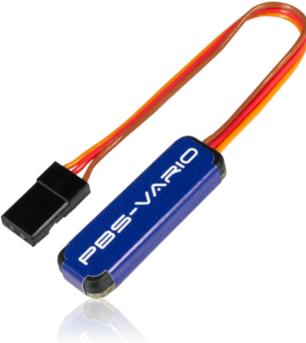

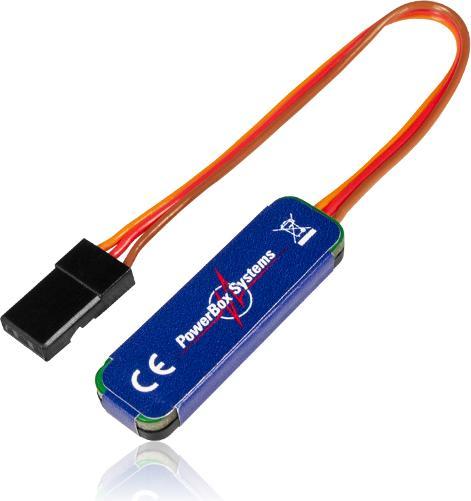

The PBS-Vario uses a MEMS pressure sensor of the latest generation, and can therefore measure height differences of 10cm precisely. Thanks to a digital filter developed by PowerBox-Systems, the measured values are completely free of noise and delay. Both are important prerequisites for a precise vario function. In addition to the climb rate in m/s, the PBS vario also measures the relative altitude (from the starting point) with a resolution of 0.1m, and the temperature in the sensor. Due to the very compact design of just 40 x 10 x 4mm, the PBS-Vario finds space even in the smallest glider fuselages. The PBS-Vario can be used for PowerBox CORE, Jeti EXBUS and Futaba S.BUS2. Features - Climb rate measurement with 0.1m/s accuracy - Altitude measurement with 0.1m accuracy - Temperature measurement - Small size - Low weight - Supports the following telemetry systems: PowerBox P²BUS, Jeti EX-Bus, Futaba S.BUS2 Technical data Operating voltage4.0V - 9.0V Current consumption Operationmax. 20mA Supported remote control systemsPowerBox, Jeti, Futaba Dimensions40 x 10 x 4mm Weight6g Temperature range-30°C to +85°C.
