Powerbox Systems DigiSwitch V2 - Connection JR/JR

Product Description

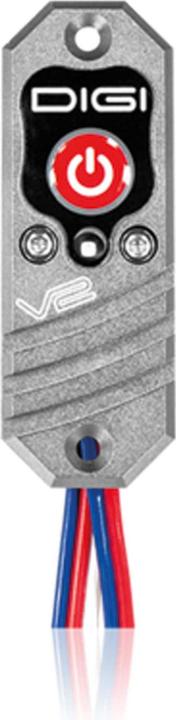

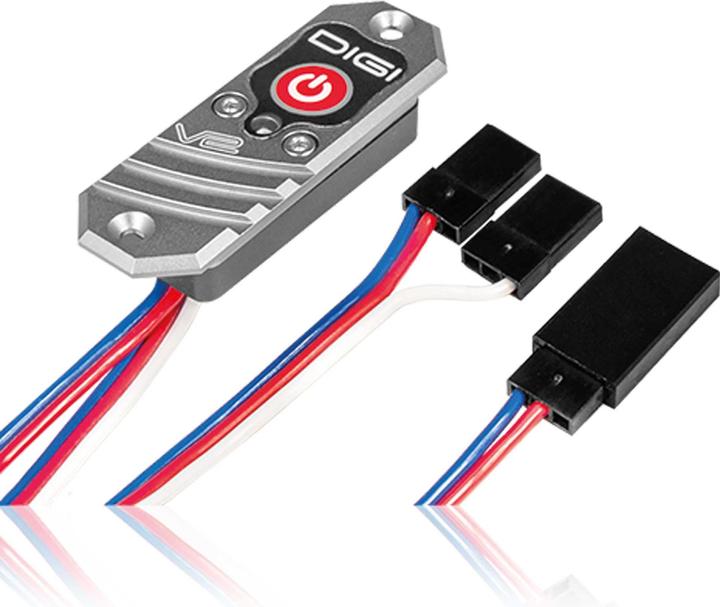

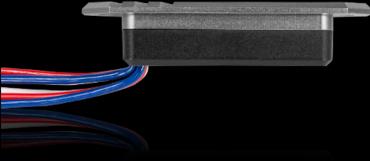

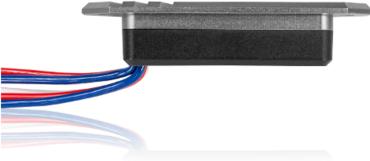

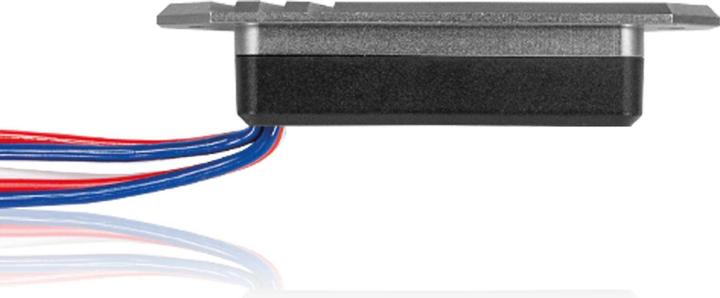

The PowerBox DigiSwitch V2 is the second generation of the globally renowned PowerBox DigiSwitch. Due to its compact design and versatile applications, the PowerBox DigiSwitch has been the standard for small to medium-sized models for over 15 years. The DigiSwitch V2 has been reduced in size by a remarkable 20% thanks to the use of state-of-the-art components. The use of a high-quality, machined, and anodized aluminum housing has significantly increased its usable cooling capacity – the PowerBox DigiSwitch V2 can deliver approximately 20% more continuous current! Its short-term load capacity has even doubled – the DigiSwitch V2 can handle over 10 A for several seconds! The DigiSwitch V2 features four selectable output voltages – it can be regulated to 6.0 V for standard servos, while regulated options of 7.0 V, 7.6 V, or an unregulated option are available for HV servos. For power supply, users can choose between four different battery types: LiPo, LiIon, LiFePo, and NiMh. Ultra-bright RGB LEDs are used for battery voltage indication, signaling the charge status of the batteries with various colors. Additionally, CORE customers benefit from a special feature: battery and regulator voltages can be displayed directly on the transmitter via telemetry!.
