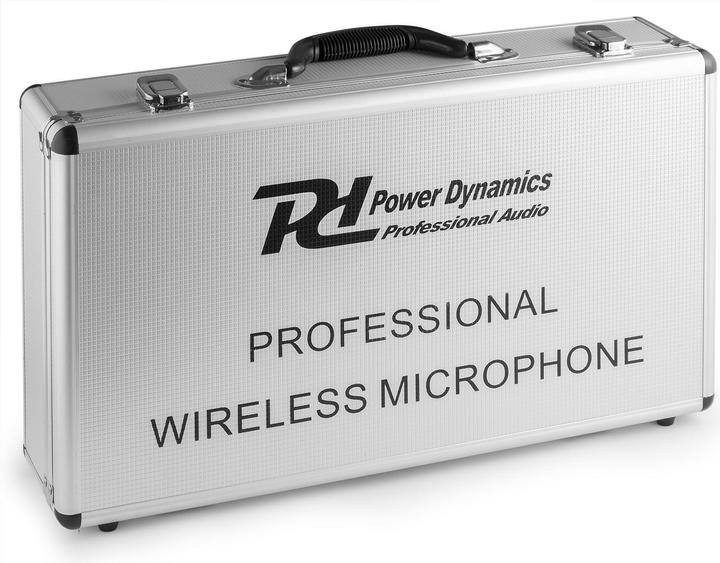

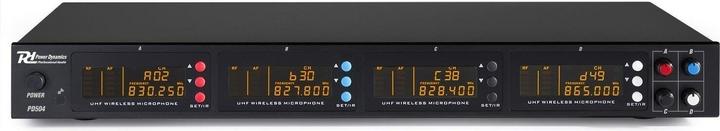

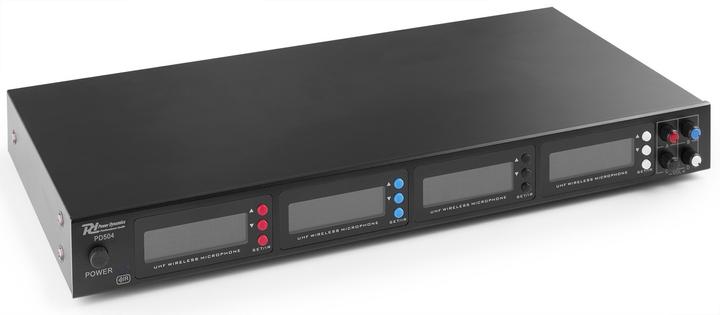

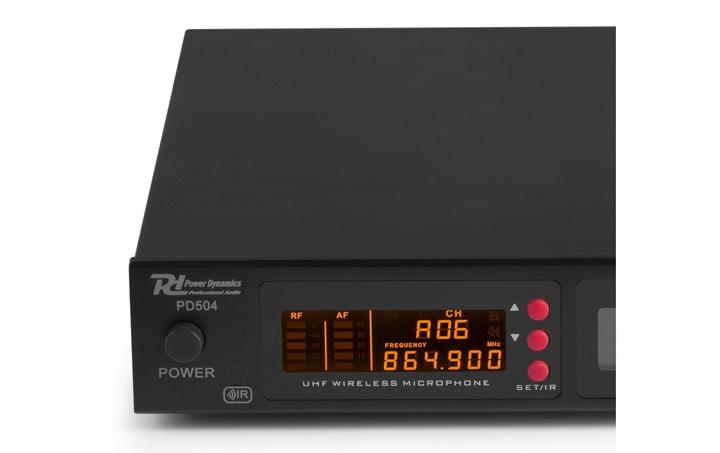

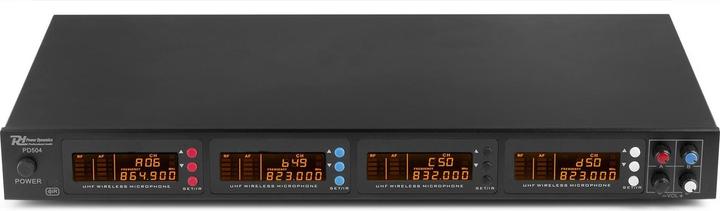

The PD504B is a digital wireless microphone system featuring four high-quality bodypack transmitters with an LCD display and mute function, along with a 4-channel receiver. The receiver includes IR data transmission for frequency synchronization between the receiver and transmitters, significantly simplifying frequency settings. The frequency is automatically transmitted to the transmitter by simply holding it in front of the receiver. Up to 4x 50 UHF channels can be set, allowing for simultaneous use of all four microphones without any issues. The high-quality receiver with CPU control ensures excellent signal transmission. Four dynamic LCD displays are integrated on the front. The PD504B is a premium set that impresses even the most demanding users. Delivery is in an aluminum case.
Audio outputs | 6.3mm jack, XLR |
Microphone type | Headset microphone, Lavalier microphone, Microphone for mobile device, Wireless microphone |
Microphone Application | Interview / Lecture, Live, Meeting, Report |
Audio channel | Mono |
Battery size | AA / LR6 / LR06 / Mignon / R6 / R14505 |
Signal transmission | Wireless |
Item number | 14406199 |
Manufacturer | Power Dynamics |
Category | Microphones |
Manufacturer no. | 179006 |
Release date | 27.11.2020 |
Microphone type | Headset microphone, Lavalier microphone, Microphone for mobile device, Wireless microphone |
Microphone Application | Interview / Lecture, Live, Meeting, Report |
Instrument microphone type | Other |
Converter principle | Dynamic |
Polar pattern | Cardioid |
Audio channel | Mono |
Self-noise | 97 dB(A) |
Dynamic range | 97 dB |
Frequency range | 60 - 18000 Hz |
Audio outputs | 6.3mm jack, XLR |
Connection Detail | Adapter to 6.3mm jack, XLR3F on power supply unit |
Signal transmission | Wireless |
Power supply | Electrical connection |
Battery size | AA / LR6 / LR06 / Mignon / R6 / R14505 |
Number of batteries | 2 |
Voltage | 3 V |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

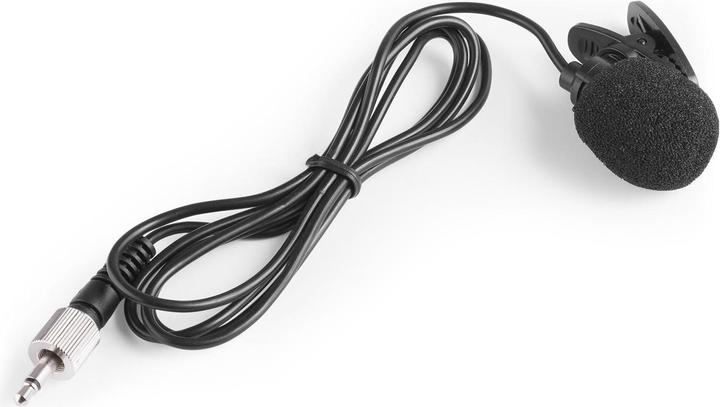

Scope of delivery | 1x aluminium case, 1x Receiver, 4x headset microphones, 4x lavalier microphones, 4x pocket transmitter |
Length | 235 mm |
Width | 420 mm |
Height | 44 mm |
Weight | 200 g |
Length | 51.50 cm |
Width | 30.60 cm |
Height | 13.40 cm |
Weight | 4.53 kg |
