Power Dynamics BV40V Installation Speaker
Passive5 pieces in stock at third-party supplier
Colour2
Product details

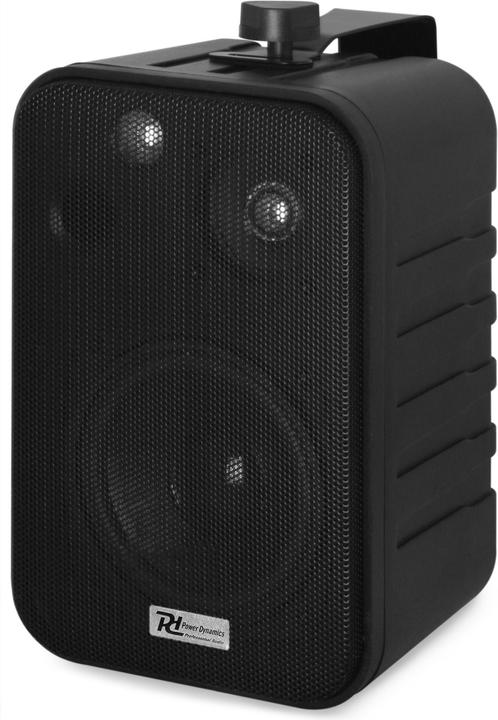

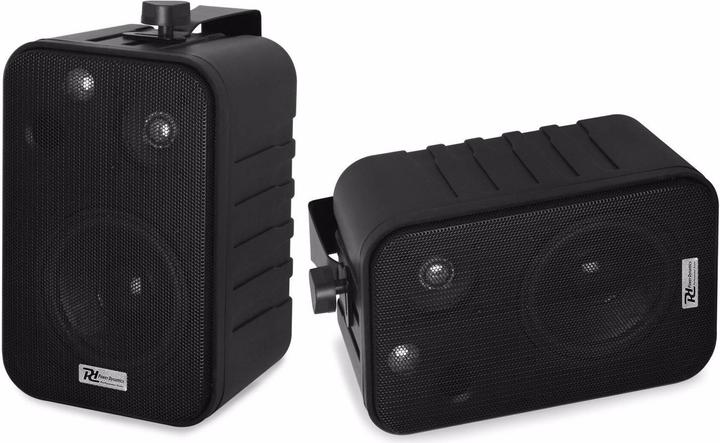

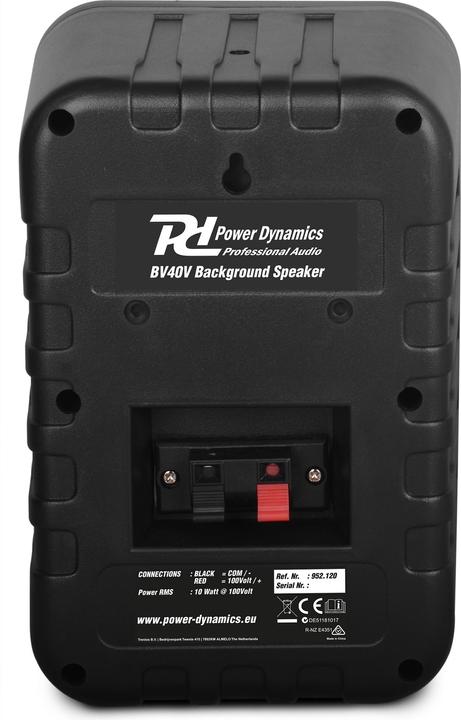

The Power Dynamics BV40V is a black speaker system specifically designed for 100V audio systems, making it ideal for background music applications. This compact two-speaker set delivers 10 W of power and features a 4-inch woofer for low frequencies, along with a 1/2-inch Mylar tweeter for high frequencies, with an internal crossover filter ensuring optimal signal distribution. The bass reflex port enhances low-frequency reproduction and contributes to clear audio quality suitable for background sound. Each speaker measures 198 x 151 x 127 mm and weighs 0.7 kg. Included wall brackets allow for flexible horizontal or vertical mounting. With a frequency response of 100 Hz to 20 kHz and a sensitivity of 87 dB at 1 W/1 m, this set is designed for integration into multi-speaker 100V installations, where multiple units can be connected to a single amplifier, enabling zone sound configurations. It is important to note that this speaker system requires connection to a compatible 100V amplifier and is not suitable for conventional audio systems.
Loudspeaker construction | Passive speakers |
Item number | 12256272 |
Manufacturer | Power Dynamics |
Category | PA speakers |
Manufacturer no. | 952120 |
Release date | 16.4.2019 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Acrylonitrile Butadiene Styrene (ABS) |
speaker type | Standard |
Loudspeaker construction | Passive speakers |
Number of speakers | 2x |
Frequency range | 100 - 20000 Hz |
Speaker principle | 2-way |
Max. noise level | 87 dB |
Power supply | Electrical connection |
CO₂ emissions | 32.79 kg |
Climate contribution | CHF 0.79 |
Scope of delivery | - 1x pair of speakers - mounting bracket - speaker cable |
Depth | 127 mm |
Width | 151 mm |
Height | 198 mm |
Weight | 1.30 kg |
Length | 30.70 cm |
Width | 28.20 cm |
Height | 15.30 cm |
Weight | 3.02 kg |
