Portkeys MT22DS P3

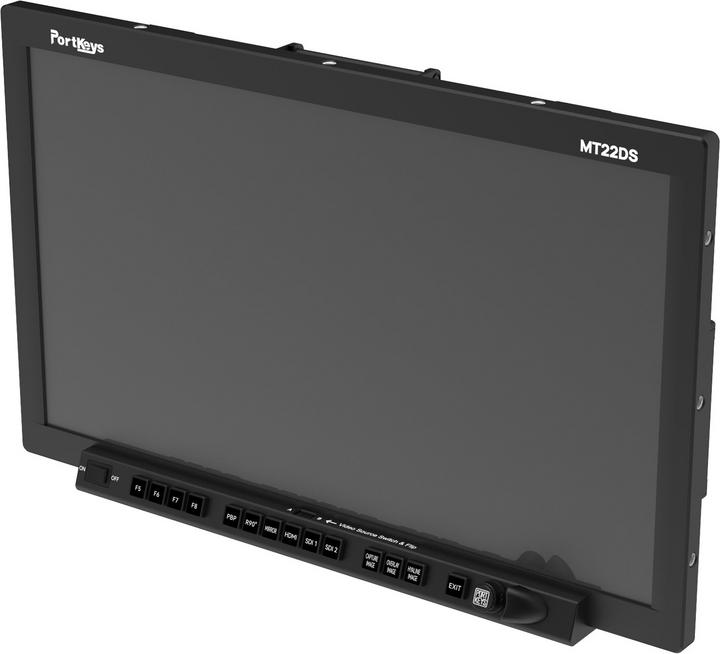

The Portkeys MT22DS P3 is a professional 21.5-inch production monitor made entirely of aluminum. The tempered glass protects against scratches. Its dimensions are 523.6 x 320.6 x 65.8 mm. The monitor features all conceivable inputs and outputs and is equipped with technical refinements that meet all professional demands.

It impresses with its precise and true-to-life color reproduction with high detail richness without color casts, as well as its professional monitor functions with customizable function buttons. Outdoor shots are possible.

Main features:

• 21.5 inches, 8-bit panel with a resolution of 1920 x 1080 and a contrast ratio of 1000:1
• Maximum brightness of 1200 Nits, 97% DCI-P3 coverage, viewing angle of 80 degrees

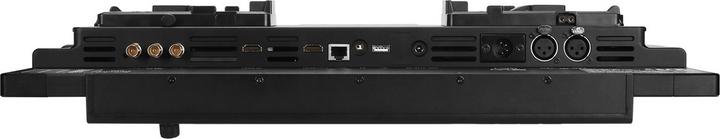

• Input: 1x HDMI (max Full HD 1080 at 60 fps), 2x 3G-SDI (max Full HD 1080 at 60 fps), 1x GPI
• Output: 1x HDMI (max Full HD 1080 at 60 fps), 1x 3G-SDI (max Full HD 1080 at 60 fps)
• Cross-conversion possible
• Professional tools: Waveform, Histogram, Zebra, Peaking, Vectorscope, ARRi False Colour, and custom mode
• 3D LUT monitoring and 3D LUT SDI/HDMI output. Loading LUTs via USB is possible
• Image capture and overlay, anamorphic image de-squeeze
• Frame tools: Crosshair, Control Field, Guidelines, Grid, Cropping, Rectangle Crop, Audio Meter

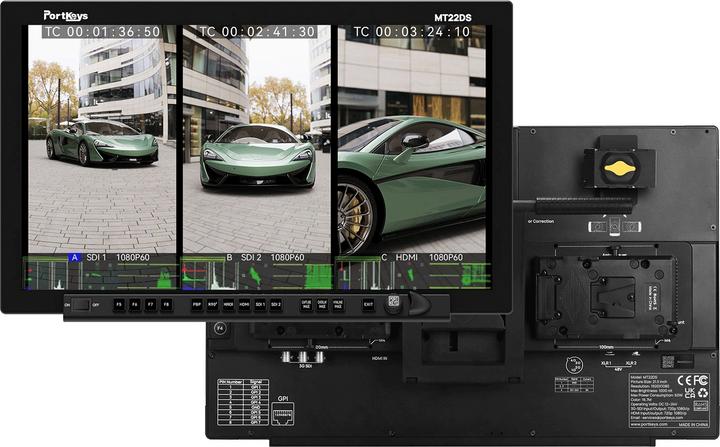

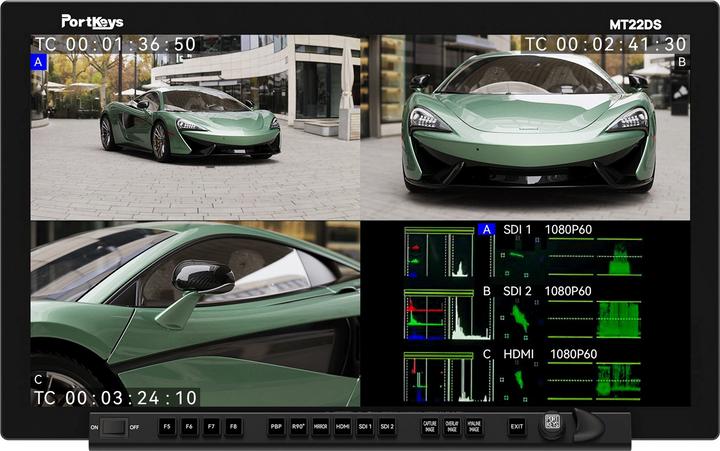

• Various split-screen options, up to 3 video inputs simultaneously

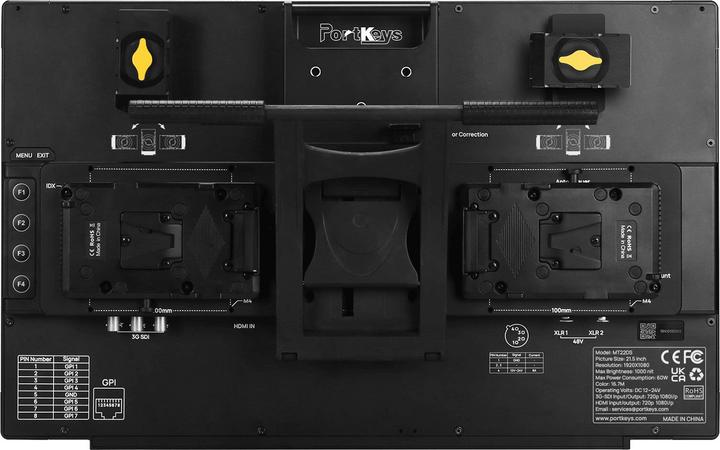

• VESA mounting points, 12x 1/4″-20 mounting points, integrated carrying handle, and removable table stand
• 2x integrated Sony NP-F dummy battery plate with power pass-through
• Dual battery plate for Sony NP-F batteries with hot-swap function
• 12 - 24 V (4 Pin XLR) power input, 2x V-Mount battery plates, 5 V USB-A, 2x (3 Pin XLR) audio
• Power consumption of 50 W
• Robust aluminum housing, weight 5800 g

Included in delivery:
1x MT22DS Monitor
1x Folding Holder
1x Power Cable 12V8A
1x M2.5 Inner Allen Key
1x Crystal Drop Rubber Button.
