MCX Probe Kit (X1 X10) for DSO Quad

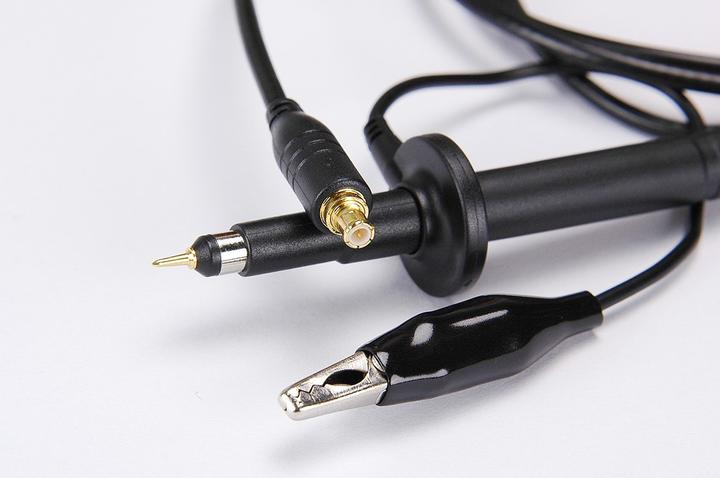

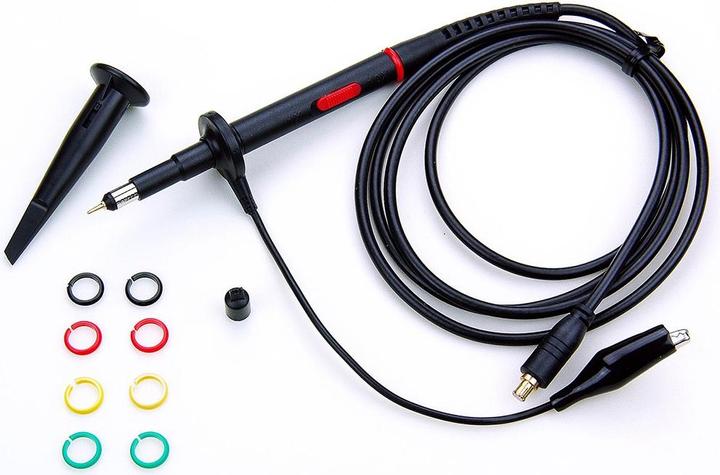

Designed for use with the DSO Quad, this MCX-Probe is
with crocodile clip and measuring tip as well as a ground wire
equipped.

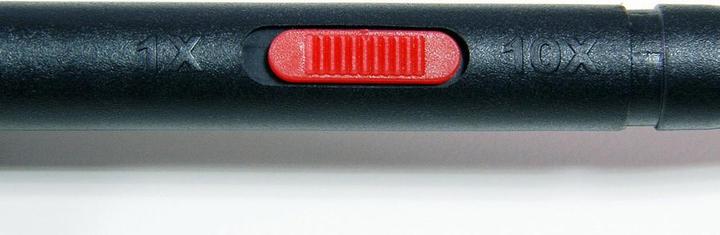

The professional 60MHz measuring tip also has an X1
to X10 mode slide switch.

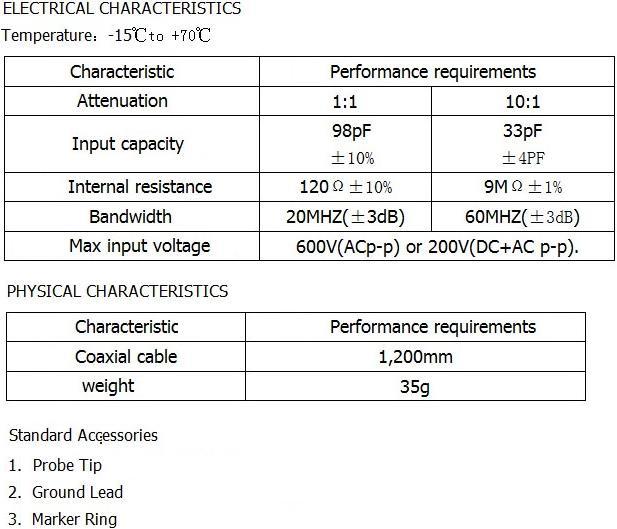

functions:
Oscilloscope Input capacity: 10pF - 40pF
Damping: 1:1 10:1
Input capacitance: 98pF 10% @1:1, 33pF 4PF @ 10:1
Internal resistance: 1210% @1:1 9M 1％ @10:1
Bandwidth: 20MHZ(3dB)@1:1 60MHZ(3dB)@10:1
Max. Input voltage: 600V(AC p-p) or 200V(DC+AC p-p)
