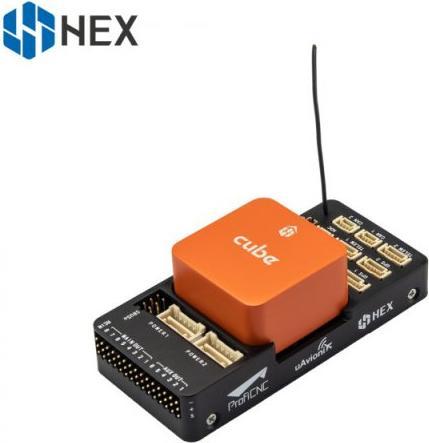

Pixhawk Orange Cube Standard Set

The Pixhawk The Cube Orange Standard Set with ADS-B receiver from Proficnc / Hex Aero is one of the most popular UAV controllers on the market. Its modular design, combined with integrated and encapsulated sensors, provides a powerful controller board for demanding users. The module features three redundant IMU systems: 3 x accelerometers, 3 x gyroscopes, 3 x magnetometers, 3 x barometers, as well as various interfaces and freely configurable ports: • Dedicated Spectrum RX port • ADC ports • I2C interface • S.Bus input and output • 8 dedicated PWM outputs • 2 CAN, telemetry, and power ports • 8 GPIO outputs for example, PWM.

What advantages does the ADS-B carrier board offer? In aviation, the Automatic Dependent Surveillance (ADS) system has become established. It transmits data on position, speed, and timestamp at 1090 MHz to the mission planner. This allows for the coordination of larger numbers of UAVs.

What differences does the Pixhawk PX2.1 have compared to the PX4? Besides the slightly larger dimensions of the PX2.1 compared to the PX4, the most significant difference lies in The Cube. The Cube is the heart of the PX2.1 and features multiple IMUs as well as corresponding damping and heating. This enables more accurate position and orientation determination. Furthermore, the PX2.1 benefits from a slightly larger community due to its earlier release date, which can assist with relevant issues.

Scope of delivery: • Pixhawk The Cube carrier board with ADS-B receiver • Pixhawk The Cube Orange • Voltage divider • Micro SD • I2C splitter • Telemetry, power, I2C, buzzer micro USB, and GPS cables.
