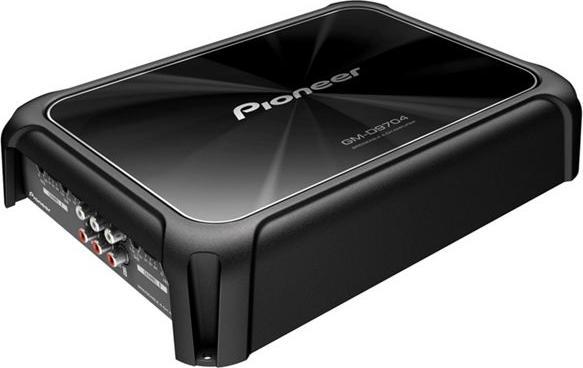

Pioneer GM-D9704

Pioneer GM-D9704 4-Channel Class-D Amplifier / Power Amplifier (1600 W)

The amplifier is extremely compact yet powerful, allowing it to be installed almost anywhere in the car.

Features:

• Speaker Input Sensor: Easily connect your existing OEM device without additional adapters.
• Variable TPF: Adjust the low-pass filter frequency for greater flexibility in the audio system.
• Variable HPF: Adjust the high-pass filter frequency for greater flexibility in the audio system.
• Multi-device Connection: Connect up to 4 subwoofers for more powerful audio output.
• Class D: Enjoy premium sound and high volumes from a versatile system that is only half the size of other devices.
• Channels: 4 / 2 / 1
• RCA Connections
• Speaker Inputs: Block-type
• Maximum Input Power:
• 4 x 260W (4 Ω)
• 4 x 400W (2 Ω)
• 1600W Total
• Continuous Output Power (RMS):
• 4 x 130W RMS (4 Ω)
• 4 x 200W RMS (2 Ω)
• 4 x 130W RMS (1 Ω)
• 2 x 400W RMS (4 Ω bridged)
• 2 x 260W RMS (2 Ω bridged)
• Frequency Response: 10 Hz - 50 Hz
• Input Level Control: RCA (0.2V - 6.5V), SP (0.8V - 16V)
• Distortion: < 0.05 %
• Signal-to-Noise Ratio: > 95 dB
• Dimensions (W x H x D): 315 x 200 x 60 mm
• Crossover Frequency: 40 - 500 Hz (-12 dB/oct)
• Variable HPF
• Multi-device Connection.
