Supply voltage: 24 Vdc
Number of channels: 1, 2
Auxiliary switch: 1
Function: Two-hand control
Safety contacts: 3
Range: PNOZ X
Connection type: Screw mounting
Width: 45mm

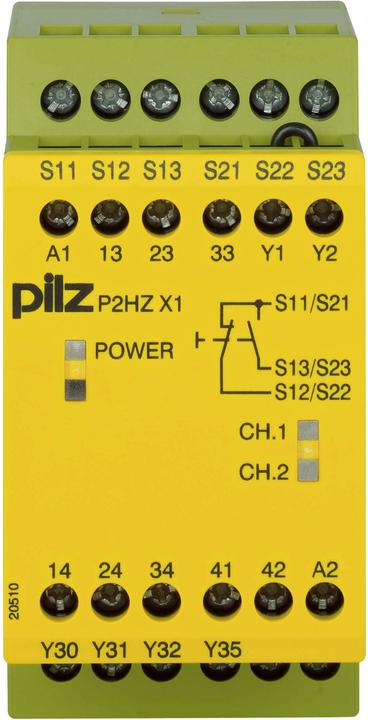

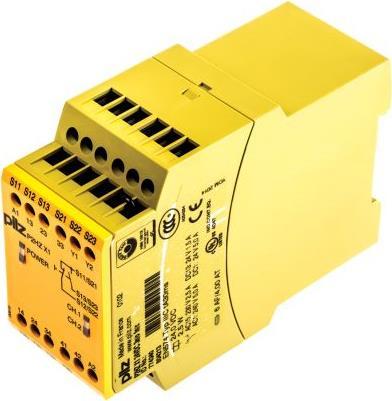

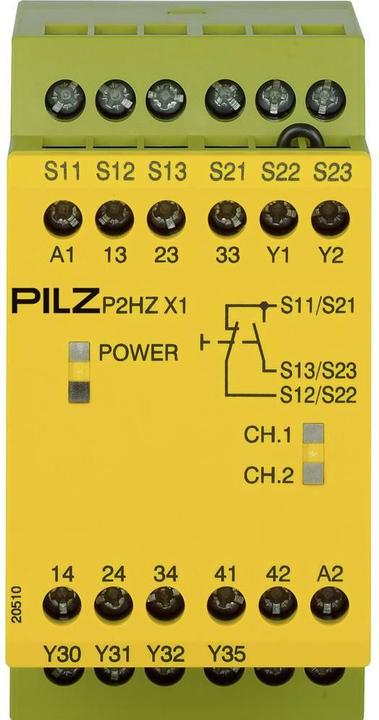

EN574 (Type III C). PILZ P2HZ X1, two-hand control, type IIIC. PILZ P2HZ X1 series safety relays allow you to implement low-cost and reliable feedback monitoring loops. Such loops are particularly suitable for monitoring external relays and contactors.
Features and benefits:
Safety Features:
The relay provides self-monitoring of the circuit. The unit's safety functions remain effective even if components fail. The relay prevents the circuit from initiating further press duty cycles in the event of a relay failure, contact fusion, coil failure, and short circuit/circuit disconnection.
Applications:
Safety parameters:
EN 60204-1, EN 954-1, EN (IEC) 62061, EN ISO 13849-1, IEC 61511 - SIL 3.
input voltage | 24 V |
Output voltage | 24 V |
Output current type | DC |
Electric current output | 1.50 A |
Relay type | Contactor relay |
Item number | 9942129 |
Manufacturer | Pilz |
Category | Relays |
Manufacturer no. | P2HZ X1 24VDC 3n/o 1n/c |
Release date | 22.10.2018 |
External links |
Relay type | Contactor relay |
input voltage | 24 V |
Output voltage | 24 V |
Electric current output | 1.50 A |
Output current type | DC |
Number of closers | 3 x |
Manufacturer Type | 774340 |
Smart Home | Not compatible |
Country of origin | France |
CO₂-Emission | |
Climate contribution |
Length | 122 mm |
Width | 90 mm |
Height | 50 mm |
Weight | 330 g |
