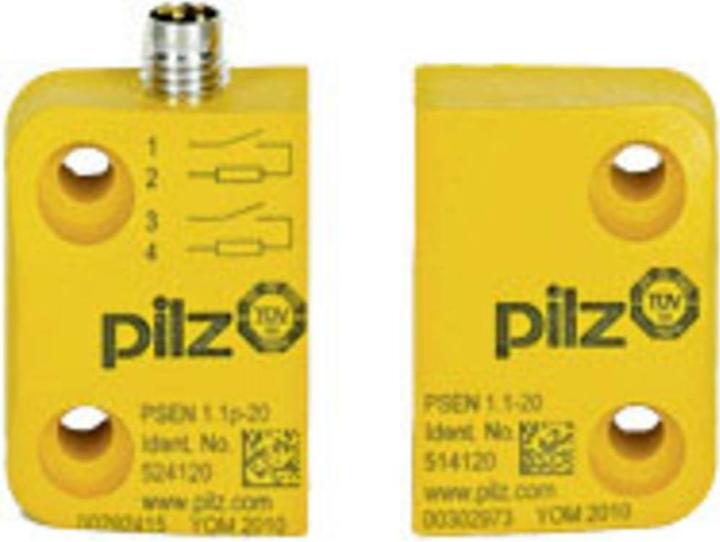

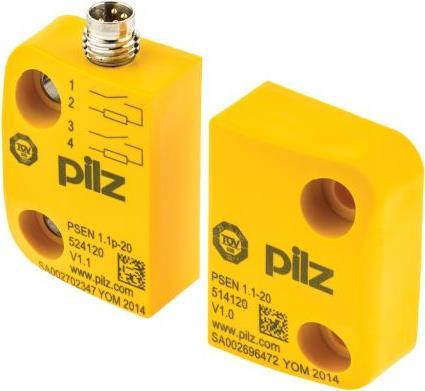

Pilz Non-cont square safety sw.,8mm sw/dist

Ratings
Delivered between Tue, 12.5. and Wed, 13.5.
5 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

Supply voltage: 24 Vdc
Safety contacts: 2 normally closed
Housing material: Plastic
Connection type: M8
Switch type: Square
Series: PSENmag
Switching distance: 8 mm, 12 mm
Protection class: IP67
Actuator included: Yes
Depth: 13 mm

EN954-1 (Cat. 4), EN60204-1, EN60947-5-3. CE, cULus approval, TÜV. Actuating element. Only order numbers 744-8702 and 824-4918 have an LED. Non-contact PSENmag switches, square. The non-contact PSENmag switch meets the highest safety requirements and provides a complete solution that is both safe and economical. It is certified according to PLe of EN ISO 13849-1, SIL 3 of EN/IEC 62061, and Category 4 of EN 954-1.

Features and benefits:

  • Connection via a plug or with cable
  • Flexible cable exit including connector, eliminating the need for an angled connector
  • Flexible mounting, both the sensor and the actuating element support any conceivable mounting configuration
  • Cost-effective due to serial connection
  • Operating distance of 3 mm or 10 mm
  • Additional signal contact and LED

Application area:
The PSENmag safety switch is suitable for use in applications with heavy contamination due to its non-contact design.

Key specifications

input voltage
24 V
Number of poles
4x

General information

Item number
9946988
Manufacturer
Pilz
Category
Relays
Manufacturer No.
PSEN 1.1p-20/PSEN 1.1-20/8mm
Release date
22.10.2018

Relay properties

input voltage
24 V
Switching function
Normally open
Number of closers
2x
Number of poles
4x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
3.44 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
1 piece with actuator

Product dimensions

Length
140 mm
Width
26 mm
Height
36 mm
Weight
31 g

Package dimensions

Length
14 cm
Width
7 cm
Height
2 cm
Weight
30 g
