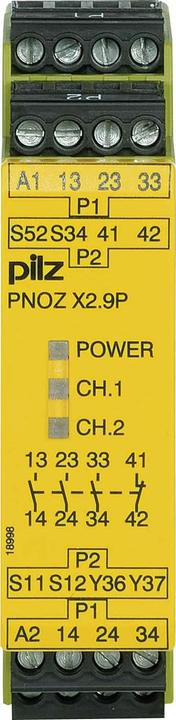

Pilz 777300 PNOZ X2.9P 24VDC 3n/o 1n/c

Ratings
Delivered between Sat, 2.8. and Wed, 20.8.

Product details

The Pilz safety relay 777300 PNOZ X2.9P is a reliable and versatile relay designed for safety-related applications. With an input voltage of 24 V DC and a compact width of 22.5 mm, this device is ideal for integration into various control systems. It offers a 2-channel configuration without cross-short circuit detection and enables monitoring of emergency stops and safety doors. The pluggable screw terminals ensure easy and secure wiring. This safety relay is suitable for both automated and manual applications, ensuring high operational safety.

  • 2-channel configuration without cross-short circuit detection
  • Monitoring of emergency stops and safety doors
  • Pluggable screw terminals for easy wiring
  • Suitable for automated and manual applications.

Key specifications

Scope of delivery
2-channel wiring without cross-circuit detection Outputs: 3S, 1NC. Automatic, manual, Monitored start UB 24V DC, width: 22.5mm, plug-in terminals in screw technology Monitoring of emergency stop, safety gates., Safety relay (standalone) Inputs: 1
Output voltage
24 V
Item number
23166097

General information

Manufacturer
Pilz
Category
Relays
Manufacturer no.
777300
Release date
21.11.2022

Relay properties

Output voltage
24 V
Manufacturer Type
777300 PNOZ X2.9P 24VDC 3n, C, o 1n

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2-channel wiring without cross-circuit detection Outputs: 3S, 1NC. Automatic, manual, Monitored start UB 24V DC, width: 22.5mm, plug-in terminals in screw technology Monitoring of emergency stop, safety gates., Safety relay (standalone) Inputs: 1

Product dimensions

Width
22.50 mm

30-day right of return
24 Months Warranty (Bring-in)
