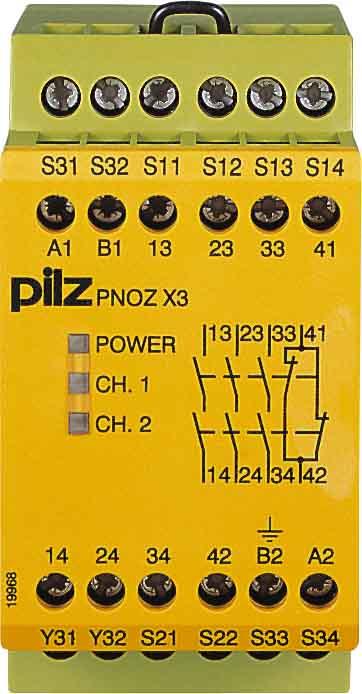

Pilz 774316 PNOZ X3 120VAC 24VDC 3n/o 1n/c 1so

Ratings
Delivered between Fri, 1.5. and Wed, 13.5.
free shipping

Product details

Safety switchgear (standalone) with 1/2-channel wiring and cross-circuit detection. Outputs include 3S, 1Ö, and 1HL. Features automatic/monitored start with UB 120V AC/24V DC, a width of 45mm, integrated screw terminals, and monitoring of emergency stop and safety doors.

Key specifications

Relay type
Monitoring relay
input voltage
120 V
Output voltage
24 V
Output current type
AC/DC
Number of poles
4x

General information

Item number
23166029
Manufacturer
Pilz
Category
Relays
Manufacturer no.
774316
Release date
21.11.2022
External links
Manufacturer's site (de)

Relay properties

Relay type
Monitoring relay
input voltage
120 V
Output voltage
24 V
Output current type
AC/DC
Number of openers
1x
Number of closers
3x
Number of poles
4x

Smart home features

Smart home
Not compatible

Origin

Country of origin
France

Voluntary climate contribution

CO₂ emissions
43.38 kg
Climate contribution
CHF 1.04

Scope of delivery

Scope of delivery
1 opener, 1 semiconductor output, 3 Closers

Product dimensions

Width
45 mm

Package dimensions

Length
11.70 cm
Width
9.30 cm
Height
9.30 cm
Weight
378 g

30-day right of return
24 Months Warranty (Bring-in)
