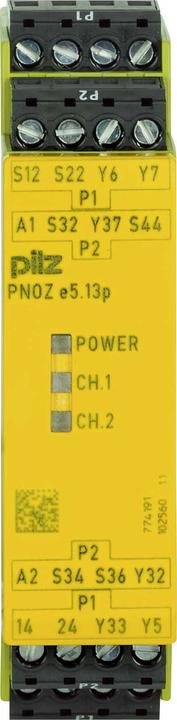

Pilz 774191 PNOZ e5.13p 24VDC 2so

The Pilz safety relay 774191 PNOZ e5.13p is a reliable and versatile relay designed for use in safety-related applications. With an operating voltage of 24 V DC, it provides an effective solution for monitoring and controlling safety functions in industrial environments. The device features a 1/2-channel configuration without cross-circuit detection and is equipped with two safety outputs as well as one auxiliary output. Its compact design, with a width of only 22.5 mm, allows for space-saving installation in control cabinets. The plug-in screw terminals facilitate wiring and device replacement. The safety relay supports the linking of multiple devices and is ideal for applications requiring emergency stop and safety door monitoring.

• Automatic and monitored start to ensure safety
• Delayed internal AND linking for flexible control options
• Inputs for 1/2-channel configuration without cross-circuit detection
• Plug-in screw terminals for easy installation and maintenance.
