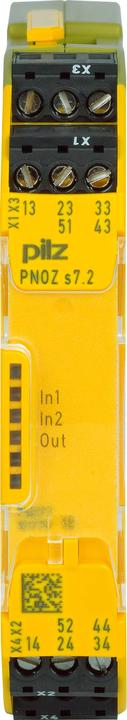

Pilz 750177 PNOZ s7.2 24VDC 4 n/o 1 n/c expand

1Ratings
BrandMore from Pilz
Delivered between Tue, 7.10. and Wed, 15.10.
Only 4 pieces in stock at supplier
free shipping

Product details

The PNOZ s7.2 from Pilz is a contact extension specifically designed for use in safety-oriented control systems. With an output voltage of 24 VDC and a maximum output current of 6 A, this relay provides a reliable solution for expanding the functionality of existing systems. Its compact design, with a width of only 17.5 mm, allows for space-saving installation in control cabinets. The plug-in terminals with screw technology ensure easy and secure wiring. The device is designed for the attachment of additional contact blocks on the right side, which increases flexibility and adaptability in various applications. Made in Germany, the PNOZ s7.2 meets high-quality standards and is a valuable addition to industrial automation solutions.

  • Output voltage of 24 VDC for versatile applications
  • Maximum output current of 6 A for high power requirements
  • Compact design with only 17.5 mm width for space-saving installation
  • Expandable with additional contact blocks for flexible system adjustments.

Key specifications

input voltage
24 V
Scope of delivery
1x PNOZ s7.2 24VDC 4 n, c expand, o 1 n
Output voltage
24 V
Output current type
DC
Electric current output
6 A
Item number
23151226

General information

Manufacturer
Pilz
Category
Relays
Manufacturer no.
750177
Release date
18.11.2022

Relay properties

input voltage
24 V
Output voltage
24 V
Electric current output
6 A
Output current type
DC
Switching function
Normally open
Number of openers
1 x
Number of closers
4 x
Number of poles
4 x
Number of switching cycles
1 x
Manufacturer Type
c expand, o 1 n, PNOZ s7.2 24VDC 4 n

Smart home features

Smart Home
Compatible

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x PNOZ s7.2 24VDC 4 n, c expand, o 1 n

Product dimensions

Length
120 mm
Width
17.50 mm
Height
98 mm
Weight
180 g

Package dimensions

Length
11.90 cm
Width
9.70 cm
Height
2.10 cm
Weight
176 g
