PHS-memory RAM suitable for Fujitsu Primergy RX300 S5

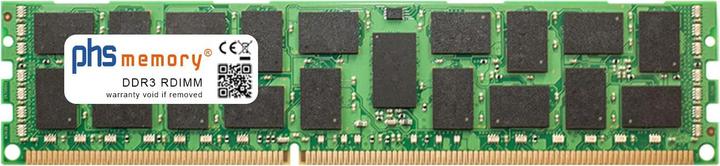

This 32GB RAM is 100% compatible with the Fujitsu Primergy RX300 S5.

Memory Configuration: Our memory team is happy to assist you in choosing the right RAM and configuring your server.

Technology GB / Module Count Total Maximum Capacity
RDIMM 16GB RAM 18 288GB
RDIMM 32GB RAM 12 384GB

UDIMM ECC memory and RDIMM (Registered) server memory cannot be used together. Therefore, when upgrading, you should know which memory is already present or completely upgrade to RDIMM memory.

Principles of Memory Configuration:
The memory slots are organized in groups of three.
Each group of three can have a maximum of 2 slots for UDIMM ECC memory.
Each group of three can have a maximum of 2 slots for 4Rank RDIMM memory.
The different groups of three slots do not need to have the same capacities.
Only the memory slots where the respective CPU is present can be used.

Memory Configuration for Good System Performance:
Distribute the memory evenly across the memory slots and evenly across the CPUs.
With three identical memory modules per group of three slots, performance can be up to three times faster compared to populating the group of three slots with just one memory module.
If more than one CPU is present, the memory should be identical (mirrored to the other CPU) per CPU.
