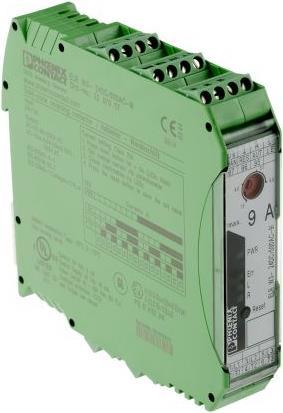

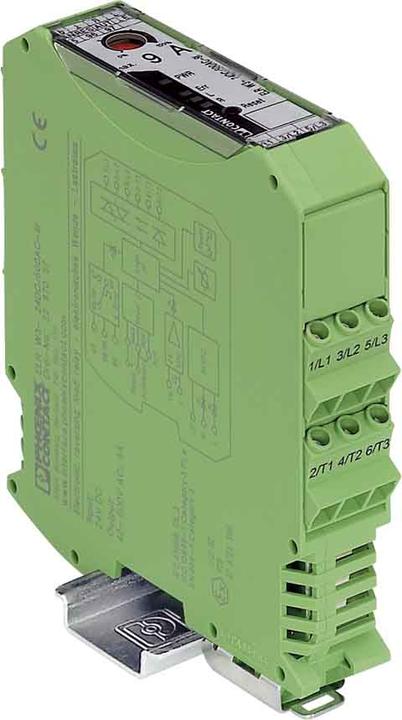

Phoenix Contact Three-phase reversing load relay

Ratings
BrandMore from Phoenix Contact
Delivered between Mon, 21.7. and Tue, 22.7.
7 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

Load current minimum: 9 A
Load current maximum: 9 A
Mounting type: DIN rails
Load voltage minimum: 48 V AC
Load voltage maximum: 550 V AC
Control voltage maximum: 24 V DC
Connection type: screw
Switch on time maximum: 35 ms
Dimensions: 22.5 x 114.5 x 99 mm
Length: 22.5 mm

IEC 60947-4-2, IEC 61508-1, EN 954-1, ISO 13849-1. ELR W3 - solid state reversing contactor. 3-phase with current monitoring, right/left-hand contactor, motor protection relay, emergency stop contactor up to category 3. Less space required, less wiring time.

Key specifications

input voltage
19.20 V
Scope of delivery
500AC-9l, Reversing contactor ELR W3-24DC
Output voltage
550 V
Output current type
AC
Electric current output
9 A
Relay type
Contactor relay
Item number
9870572

General information

Manufacturer
Phoenix Contact
Category
Relays
Manufacturer no.
2297057
Release date
8.10.2018

Relay properties

Relay type
Contactor relay
input voltage
19.20 V
Output voltage
550 V
Electric current output
9 A
Output current type
AC
Manufacturer Type
ELR W3-24DC/500AC-9I

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
500AC-9l, Reversing contactor ELR W3-24DC

Product dimensions

Length
114.50 mm
Width
99 mm
Height
22.50 mm
