Phoenix Contact Socket
9 pieces in stock at supplier
Product details

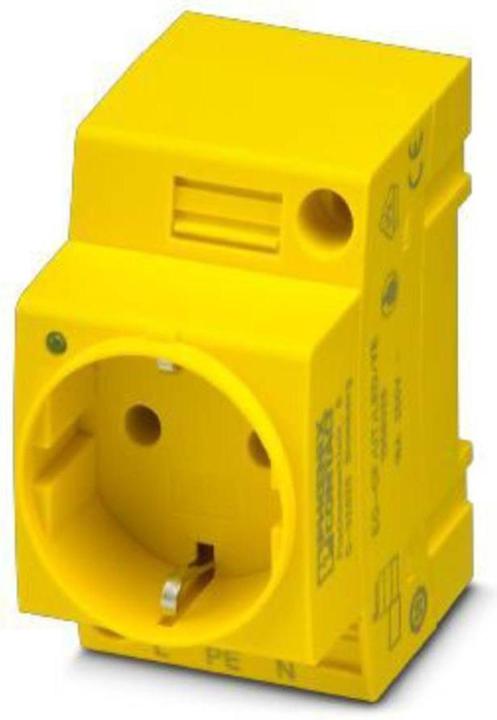

The Phoenix Contact socket EO-CF/UT/LED/YE is a reliable socket insert designed for indoor use. With a rated voltage of 250 V and a rated current of 16 A, this product is ideal for various applications in electrical engineering. The socket is equipped with a screw connection and features a control light that indicates the operating status. It is suitable for mounting on a mounting rail in the service interface or for direct installation. The socket meets the requirements of the VDE 0620-1 standard and offers a protection class of IP20, which protects it from solid foreign objects. The temperature resistance ranges from -20 °C to 60 °C, making it versatile for use. The yellow design ensures good visibility, while the compact construction allows for easy integration into existing systems.
- Socket type: CEE 7/3 (Type F)
- Screw connection for secure connection

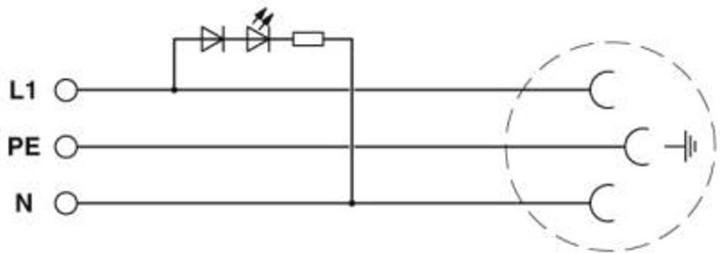

- Control light to indicate operating status
- Mounting on mounting rail or direct installation possible
- Temperature range: -20 °C to 60 °C.
Exact colour description | Yellow |
Socket type | CEE 7/3 |
Number of cans | 1x |
Item number | 20027309 |
Manufacturer | Phoenix Contact |
Category | Sockets |
Manufacturer no. | 1068028 |
Release date | 16.3.2022 |
Colour | Yellow |
Exact colour description | Yellow |
Material group | Metal |
Material | Brass, POLYAMIDE |
Socket type | FI socket |
Socket type | CEE 7/3 |
Number of cans | 1x |
Protection type (IP code) | IP20 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
connector type | Screw connection |
Country of origin | China |
CO₂ emissions | 4.97 kg |
Climate contribution | CHF 0.12 |

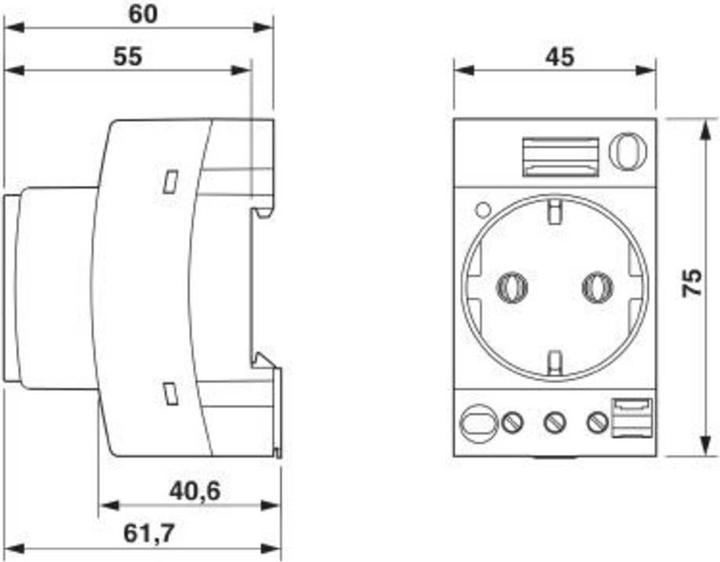

Stack depth | 6 cm |
Length | 6 cm |
Width | 4.50 cm |
Height | 7.50 cm |
Weight | 75.08 g |
