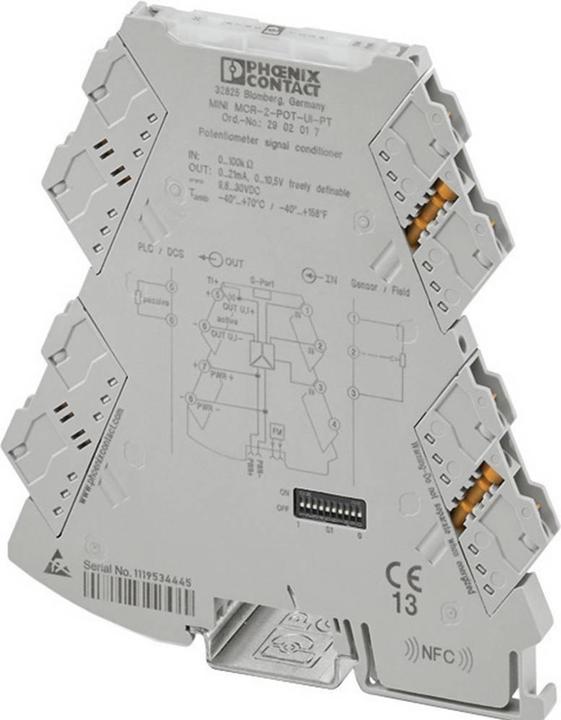

Phoenix Contact Resistance/potiposition transducer

Ratings
Delivered between Fri, 18.7. and Sat, 9.8.

Product details

Input type = Resistance
Output type = current, voltage
Signal shaper type = resistance to current, voltage resistance.
Input range = 100 ohms → 100 kilohms
Output range = 0 → 12.3 V, 0 → 24.6 mA
Supply voltage = 9.6 → 30 V dc
Mounting type = DIN rail
Sensor compatibility = transmitter
Operating temperature min. = -40°C
Operating temperature max = +70°C
Series = MINI MCR

Signal Conditioner MINI Analog Pro. The Mini Analog Pro signal conditioners from Phoenix Contact are the first 6 mm series with plug-in connection technology. The latest switching technology makes applications faster and easier, and the signal conditioner features an extremely compact and highly visible housing, easily accessible connection points, and current measurement. Users also benefit from easy configuration via DIP switches and advanced configuration via software or apps for your smartphone without the need for additional accessories. In addition, NFC communication is supported. Easy commissioning and maintenance: Measurement of signals without disconnecting current loops and optional disconnect function Excellent signal quality Available with extended supply voltages and operating temperatures for a wide range of applications Wiring with screw connection or tool-free plug-in technology.

Key specifications

input voltage
30 V
Scope of delivery
1 pc.
Output voltage
10 V
Output current type
DC
Electric current output
0.03 A
Item number
9719073

General information

Manufacturer
Phoenix Contact
Category
Relays
Manufacturer no.
2902016
Release date
24.9.2018
External links
Manufacturer's site (de)

Relay properties

input voltage
30 V
Output voltage
10 V
Electric current output
0.03 A
Output current type
DC
Resistor
10000 Ω (ohm)
Manufacturer Type
MINI MCR-2-POT-UI

Smart home features

Smart Home
Not compatible

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 pc.

Product dimensions

Length
120.50 mm
Width
6.20 mm
Height
109.81 mm
