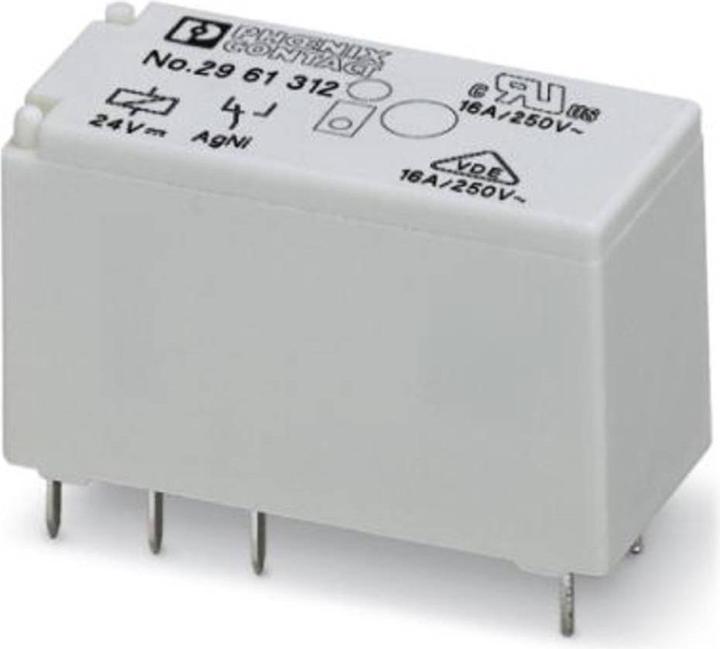

Phoenix Contact Pluggable miniature relays, 1 PDT

Ratings
BrandMore from Phoenix Contact
Delivered between Tue, 26.8. and Tue, 2.9.
Supplied by
Conrad CH
free shipping

Product details

Switching current = 1 A
Mounting type = PCB mount
Connection type = Pluggable
Length = 12.7 mm
Depth = 15.7 mm
Height = 29 mm
Dimensions = 12.7 x 15.7 x 29 mm
Contact material = Silver alloy
Input current = 5 mA @ 60 Hz, 7 mA @ 50 Hz
Input resistance = 8100 Ω

Series PLC-RSC. Single and double-pole relays and optocouplers for PLC interfaces share the same profile. Therefore, the modules can be installed in any configuration using a common bridging system and the same accessories. The V8 adapter connects 8 relays or optocouplers to a 15-pin D-SUB cable. Features and benefits: Relays and optocouplers for inputs and outputs with pluggable circuit components. Four bridging slots for reduced wiring effort; bridging of up to 80 modules is possible. Screw terminal connections, LED indicators, and diodes for coil suppression. 250-V versions with a rated power of 1500 VA. Dimensions (W x D x H) 6.2 x 80 x 94 mm (single-pole, double-pole 14 mm wide). Operating temperature range: –40 to +55 °C. Mechanical lifespan (relays): 1 x 10^7 switching cycles. A wide range of accessories is also available.

Key specifications

input voltage
120 V
Scope of delivery
1 changer, 10 pieces Pluggable miniature relays, Input voltage 120 V AC, with power contact for high continuous currents
Output voltage
120 V
Output current type
AC
Electric current output
16 A
Relay type
Step switch
Item number
9951834

General information

Manufacturer
Phoenix Contact
Category
Relays
Manufacturer no.
2961419
Release date
22.10.2018
External links
Manufacturer's site (de)

Relay properties

Relay type
Step switch
input voltage
120 V
Output voltage
120 V
Electric current output
16 A
Output current type
AC
Resistor
8100 Ω (ohm)
Switching function
Changer
Number of openers
1 x
Number of closers
1 x
Number of poles
1 x
Number of switching cycles
1 x
Max. Switching capacity
4 kW
Manufacturer Type
21HC, REL-MR-120AC

Smart home features

Smart Home
Not compatible

Origin

Country of origin
Austria

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 changer, 10 pieces Pluggable miniature relays, Input voltage 120 V AC, with power contact for high continuous currents

Product dimensions

Length
15.70 mm
Width
12.70 mm
Height
29 mm
Weight
14.90 g
