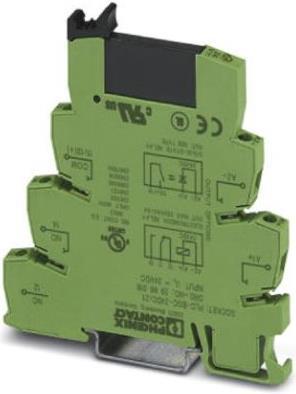

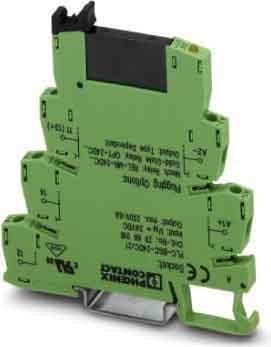

Phoenix Contact PLC-RSC- 24DC/21

Maximum switching voltage = 24 V
Maximum input current = 8.5 mA
Isolation voltage = 2.5 kV
Number of pins = 5
Mounting type = DIN rail
Minimum operating temperature = -25 °C
Maximum operating temperature = +60 °C
Length = 80 mm
Width = 6.2 mm
Depth = 94 mm
Operating temperature range = -25 to +60 °C

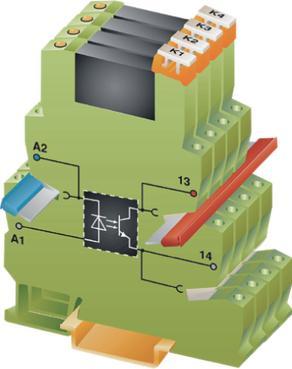

Series PLC-RSC. Single and double-pole relays and optocouplers for PLC interfaces share the same profile. Therefore, the modules can be installed in any configuration using a common bridging system and the same accessories. Using the V8 adapter, 8 relays or optocouplers can be connected to a 15-pin D-SUB cable. Features and benefits: Relays and optocouplers for inputs and outputs with pluggable circuit components, four bridging slots for reduced wiring effort; bridging of up to 80 modules is possible, screw terminal connections, LED indicators and diodes for coil suppression, 250-V versions with a rated power of 1500 VA. Dimensions (W x D x H) 6.2 x 80 x 94 mm (single-pole, double-pole 14 mm wide). Operating temperature range: -40 to +55 °C. Mechanical lifespan (relays): 1 x 10^7 switching cycles. A wide range of accessories is also available.
