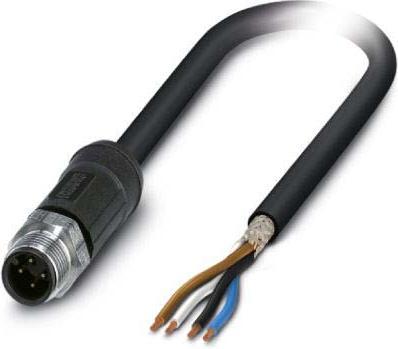

Phoenix Contact sensor/actuator cable SAC-4P-M12MS#1454147 Manufacturer :Phoenix Contact Designation :Sensor/actuator cable Type :SAC-4P-M12MS#1454147 Number of poles :4 Type of electrical connection,...
Show more Phoenix Contact sensor/actuator cable SAC-4P-M12MS#1454147 Manufacturer :Phoenix Contact Designation :Sensor/actuator cable Type :SAC-4P-M12MS#1454147 Number of poles :4 Type of electrical connection, field side :M12 Type of plug contact, field side :Male (plug) Arrangement of cable feed, field side :Straight Type of electrical connection, housing side :M12 Type of plug-in contact, housing side :male (plug) Arrangement of cable entry, housing side :straight Cable length :10 m Material of cable sheath :other Halogen-free :no Colour of cable sheath :other With LED display :no Shielded :yes Cable type :multi-core Radiation cross-linked :yes Material of contact base :CuSn Material of contact coating :other Permissible external cable temperature after assembly without exhaustion :yes Permissible cable outer temperature after assembly without vibration :-40..105 °C Permissible cable outer temperature during assembly/handling :-40..105 °C Perm. cable outer temperature during assembly/handling :-15 °C Rated current In :4 A Rated voltage :48 V Contact resistance :5000 mOhm Protection class (IP) :IP65 Phoenix Contact sensor/actuator cable SAC-4P-M12MS#1454147: Further details Sensor/actuator cable, 4-pole, PE-X/PE-X halogen-free, black-grey RAL 7021, shielded, plug straight M12, coding: A, on free cable end, cable length: 10 m, for outdoor applications, with stainless steel knurl , EAN: 4046356568753.
