Product details
Series = MTTB
Wire size = 26 → 16 AWG
Wire gauge = 0.14 → 1.5mm²
Color = Gray
Rated current = 17.5A
Number of levels = Dual
Connection type = Screws
Operating voltage = 400 V

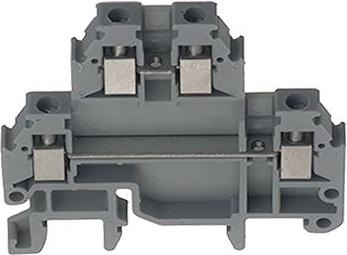

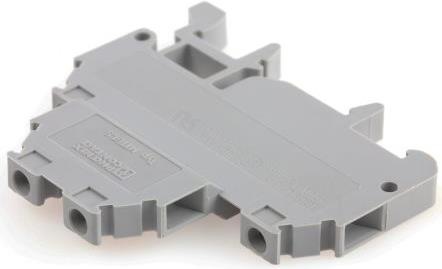

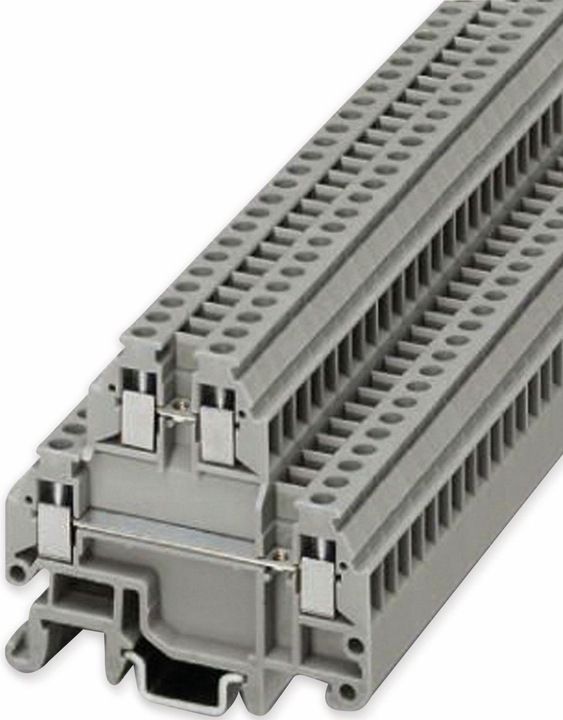

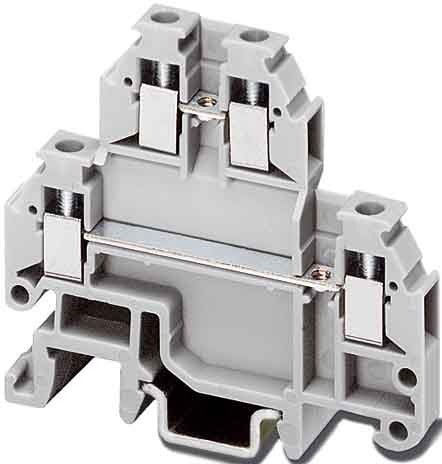

The specified cable cross-section applies to both solid and stranded conductors. Double level terminal. For wiring with higher contact density Can be bridged on both levels with the 10-pole busbar.
Item number | 9911773 |
Manufacturer | Phoenix Contact |
Category | Cables + Plugs |
Manufacturer no. | 1414129 |
Release date | 16.10.2018 |
Colour | Grey |
Material group | Plastic |
Material | POLYAMIDE |
Max. temperature | 105 °C |
Min. temperature | -60 °C |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 50 Piece |
Scope of delivery | Double-deck clamp |
Length | 7.80 cm |
Width | 0.42 cm |
Height | 4.42 cm |
Weight | 5.57 g |
