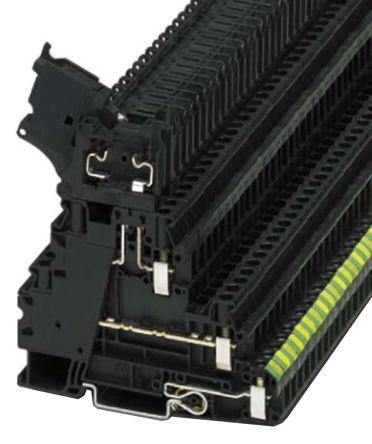

Phoenix Contact Fuse modular term blk 28A 500V black
Delivered between Sat, 26.7. and Sat, 9.8.
More than 10 items in stock at supplier
More than 10 items in stock at supplier
free shipping
Product details
Number of levels: 3
Wire size: 26 → 10 AWG
Connector count: 5
Color: Black
Fuse size: 5 x 20, G
Rated current: 28A
Operating voltage: 500 V
Connection type: Screws
Series: UT 4-PE/L/HESILED 250 (5X20)
IEC 60947-7-1, flammability class V0 UL 94. IECEx, UL, cUL, EAC, CSA, cULus. UT lever-locking and functional connection blocks with PE foot. The lever safety and functional connection blocks with PE foot are suitable for process technology based on the obtained EX nA approval, and they are suitable for power and signal transmission in potentially explosive atmospheres. Features and benefits include screw connection and mounting type: NS 35/7.5, NS 35/15. RoHS compliant.
Item number | 10595607 |
Manufacturer | Phoenix Contact |
Category | Electronics supplies + Casing |
Manufacturer no. | 3214323 |
Release date | 19.2.2019 |
External links |
Colour | Black |
Manufacturer Type | L, Ut 4-pe |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 50 x |
Scope of delivery | 15, colour: black, 5 x 20, mounting type: NS 35, 5 x 20, rated current: 28 A, rated voltage: 500 V, width: 6.2 mm, fuse type: G, 7.5, NS 35, Ceramic, fuse type: G, Fuse terminal block, type of fuse: glass |
Length | 94.53 mm |
Width | 6.15 mm |
Height | 92.69 mm |
