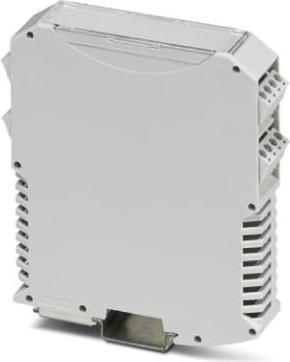

Phoenix Contact Enclosure Development Kit, ME MAX
SetProduct details
Dimensions = 99 x 22.5 x 110mm
Housing material = Polyamide
Type de boîtier = Ventilated sides
Length = 99mm
Width = 22.5mm
Height = 110mm
Color = Light gray
Series = ME MAX
Operating temperature min. = -40°C
Operating temperature max. = +105°C
Terminal type = Printed circuit board
1 ME MAX-22.5-mm-2-2 package and pluggable connection technology (4 MSTBO with 4 MSTBT). DEV-KIT ME MAX from Phoenix Contact. The DEV-KIT ME MAX is an electronic DIN rail mount package kit that comes with all the necessary parts to mount an enclosure for your electronics. It is ideal for test setups and small production builds. Features and Benefits. Narrow housing with an overall width of 22.5 mm Touch-safe plug-in connection technology Safe DIN rail mounting Color: Light gray Housing made of polyamide Flammability class UL 94 V0 CE marking.
Electrical engineering accessory type | Set |
Item number | 10322313 |
Manufacturer | Phoenix Contact |
Category | Electronics supplies + Casing |
Manufacturer no. | 2202524 |
Release date | 15.1.2019 |
External links |
Colour | Grey |
Electrical engineering accessory type | Set |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | ME MAX 22.5 2-2 Housing and pluggable connection technology (4x MSTBO with 4x MSTBT), supplied in individual parts |
Length | 99 mm |
Width | 22.50 mm |
Height | 110 mm |
Weight | 113 g |
