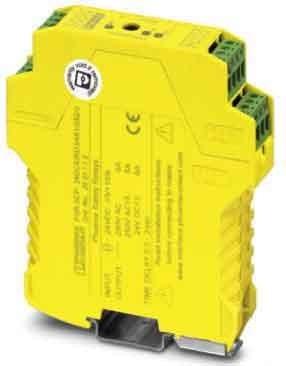

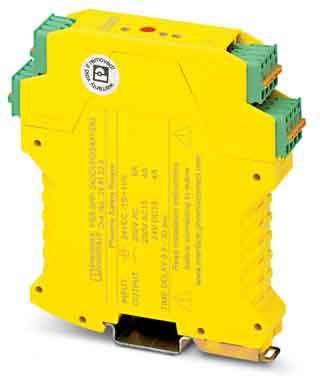

Phoenix Contact Emergency stop relay PSR-SCP- 24 #2981732

Phoenix Contact emergency stop relay PSR-SCP-24 #2981732

Manufacturer: Phoenix Contact
Designation: Emergency stop relay
Type: PSR-SCP-24 #2981732
Version: Expansion unit

Suitable for monitoring position switches: No
Suitable for monitoring emergency stop circuits: No
Suitable for monitoring valves: No
Suitable for monitoring optoelectronic protective devices: No
Suitable for monitoring tactile sensors: No
Suitable for monitoring magnetic switches: No
Suitable for monitoring proximity switches: No

Electrical connection version: Screw connection
Mounting on mounting rails possible: Yes
Rated control supply voltage Us at AC 50 Hz: 24 V
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
With detachable terminals: Yes
Evaluation of inputs: Other
With start input: No
With muting function: No
With feedback loop: No
Off-delay: 0.02 s
Stop category according to IEC 60204: Other
Performance level according to EN ISO 13849-1: Level e
SIL according to IEC 61508: 3
With approval for BG BIA: No
With approval according to UL: No

Width: 22.5 mm
Height: 99 mm
Depth: 114.5 mm
With TÜV approval: Yes

Further details: 1-channel contact extension with TBUS interface, 4 NO contacts, 1 NC contact, 1 feedback current path, the contacts drop out with a release delay (0.3 to 3 s), Cat. 3, PL e according to EN ISO 13849, pluggable terminals with screw connection, width: 22.5 mm, EAN: 4046356103695.
