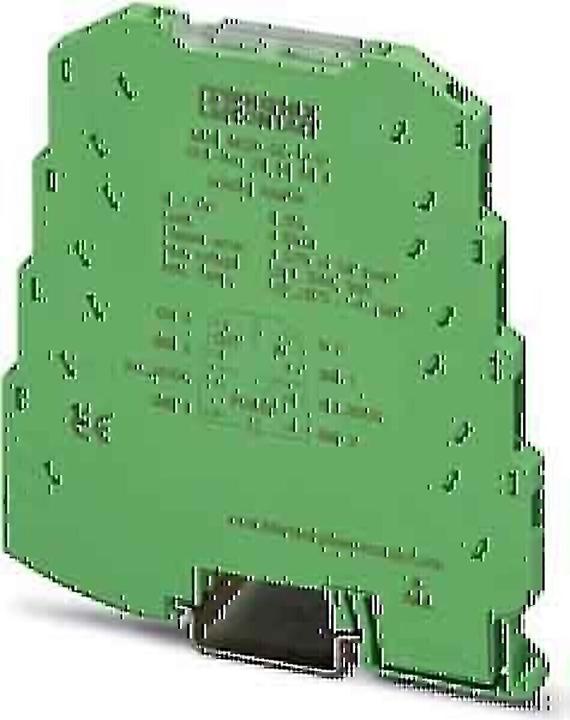

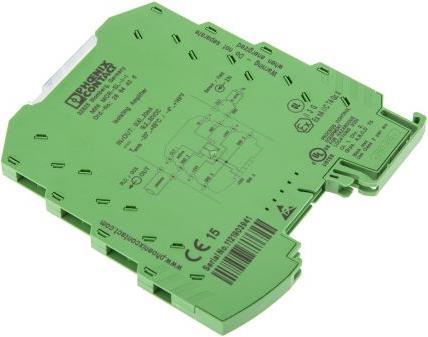

Phoenix Contact DIN rail 3-way current isolator

The Phoenix Contact 3-way isolation amplifier MINI MCR-SL-I-I is a highly advanced device specifically designed for the galvanic isolation of analog signals in industrial automation. With a rated supply voltage of 19.2 to 30 V DC, this isolation amplifier provides a reliable solution for signal processing. It supports both input and output ranges of 0(4) mA to 20 mA, allowing for flexible adaptation to various applications. The device is designed as a modular unit and features a compact form factor that enables easy integration into existing systems. Installation is facilitated by a snap-on mounting on a DIN rail. With an operating temperature range of -20 to 65 °C, the isolation amplifier is suitable for use in diverse environments and ensures high operational reliability.

• Galvanic isolation between input and output
• Input signal: 0(4) mA ... 20 mA
• Output signal: 0(4) mA ... 20 mA
• Screw connection for electrical connections
• Operating temperature range of -20 to 65 °C.
