Phobya 4Pin PWM to 3Pin Transformer Single
More than 10 items in stock at supplier
Product details

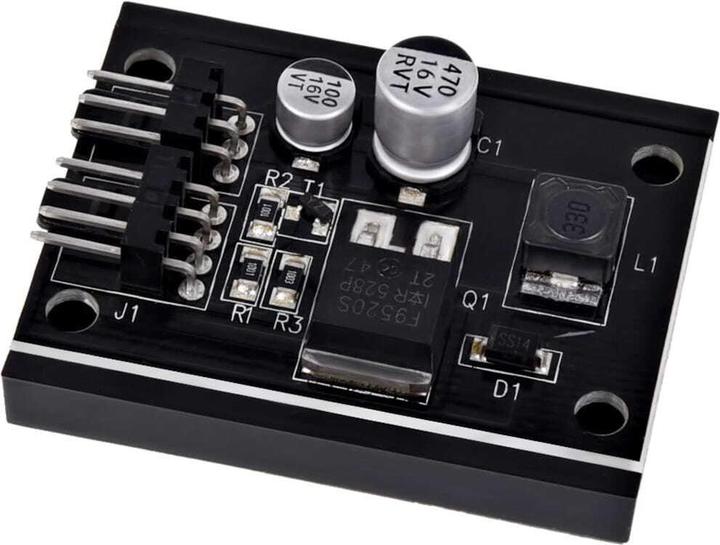

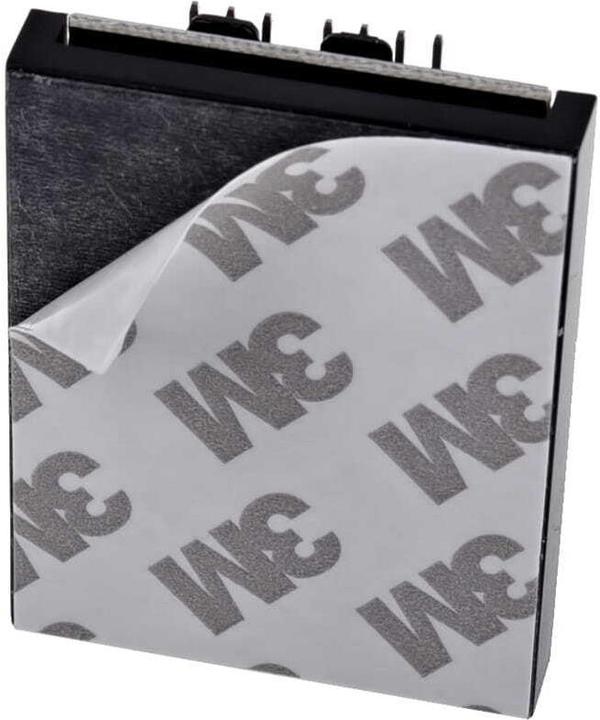

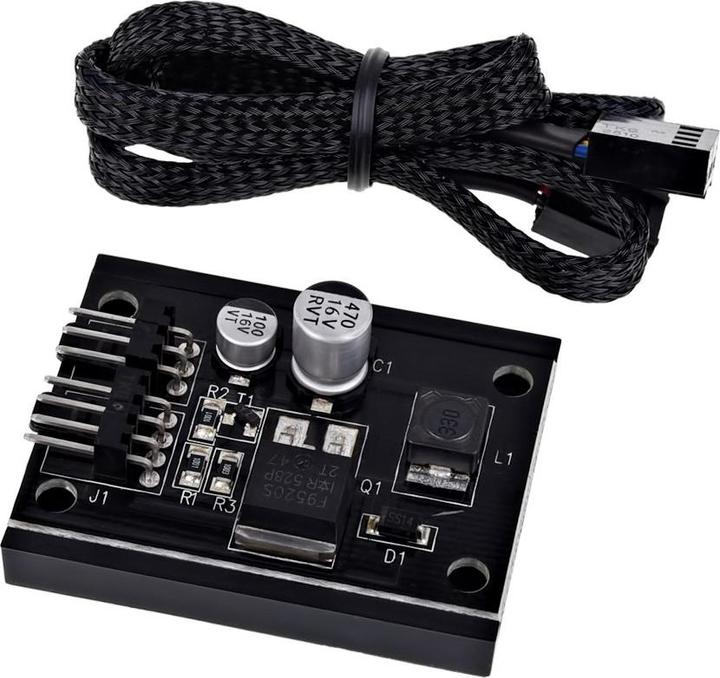

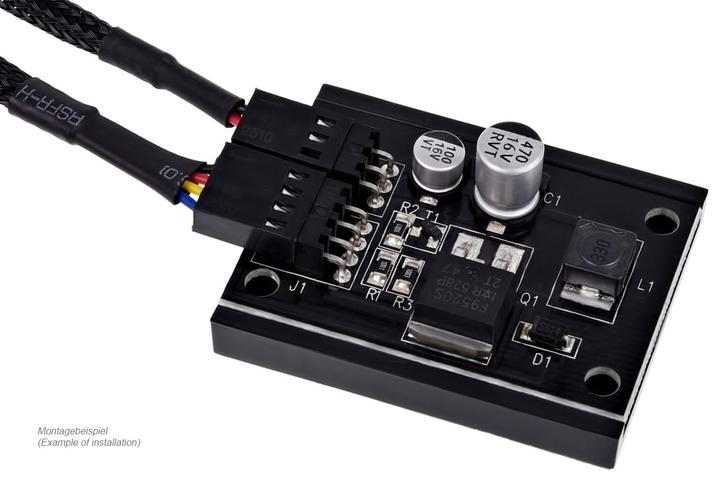

Controlling 3-pin fans via a PWM signal was an insoluble problem until now. Phobya has taken on this problem and presents with the 4-pin PWM to 3-pin converter an elegant and easy to use solution. With the 4-Pin PWM to 3-Pin transformer all 3-Pin fans can now be controlled via a normal PWM signal. To do this, connect the converter to your mainboard or your PWM fan controller while you connect the fan to the converter. Now your 3-pin fan can be controlled like any other PWM fan. The converter recognises the PWM signal and controls the 3-pin fan with an appropriate voltage. This way you can control your fans easily and simply. The converter is able to supply an output voltage of 1A, which corresponds to 12W. This means that you can use a Y-splitter to control several fans simultaneously via the converter. Technical Details: Dimensions (LxWxH): 50 x 39 x 18mm Connector: 1x 4 Pin / 1x 3 Pin Power connector: 4 Pin Connector Mounting: Double sided adhesive tape for mounting on/in the case 4 Pin PWM to 4 Pin PWM Cable: black sleeved 50cm Included in delivery: Phobya 4Pin PWM to 3Pin Transformer Single .
connector plugs | 4-pin Molex |
Item number | 32097173 |
Manufacturer | Phobya |
Category | Water cooling monitoring |
Manufacturer no. | 1011749 |
Release date | 22.11.2022 |
Sales rank in Category Water cooling monitoring | 15 of 186 |
Colour | Black |
Exact colour description | Black |
monitoring type | Sensor Flow |
Power supply | 4pin Molex 12V DC |
temperature inputs | No |
Max. Power per channel | 12W |
connector plugs | 4-pin Molex |
Length of connection cable | 50 cm |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 4Pin PWM to 3Pin Transformer Single |
Length | 39 mm |
Width | 50 mm |
Height | 18 mm |
Length | 7 cm |
Width | 7 cm |
Height | 2 cm |
Weight | 20 g |
