Philips Ballast

Philips Lighting ballast HF-R 136 TL-D EII

Manufacturer: Philips Lighting
Name: Ballast ECG
Type: HF-R 136 TL-D EII
Design: Electronic
Multiwatt design: No
Dimming 0-10 V: No
Dimming 1-10 V: Yes
Dimming DALI: No
Dimming DSI: No
Dimming DMX: No
Dimming potentiometer (device integrated): No
Dimming GPRS: No
Dimming LineSwitch: No
Dimming manufacturer-specific: No
Dimming mains voltage modulation: No
Dimming phase section: No
Dimming phase angle: No
Dimming programmable: No
Dimming RF: No
Dimming Sine Wave Reduction: No
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming with push-button: No
Without dimming function: No
For lamp type HI: No
For lamp type HM: No
For lamp type HS: No
For lamp type LS: No
For lamp type T7: No
For lamp type T16: No
For lamp type T16-R: No
For lamp type T26: Yes
For lamp type T38: No
For lamp type T-R: No
For lamp type T-U: No
For lamp type TC-D: No
For lamp type TC-DD: No
For lamp type TC-DEL: No
For lamp type TC-F: No
For lamp type TC-L: No
For lamp type TC-QEL: No
For lamp type TC-S: No
For lamp type TC-SEL: No
For lamp type TC-T: No
For lamp type TC-TEL: No
Suitable for lamp wattage (1-lamp): 36 W
Suitable for number of lamps: 1
Suitable for lamp wattage: 36 W
Rated voltage: 220-240 V
Housing: Metal housing
With strain relief: No
Protection class (IP): IP20
Protection class: Without

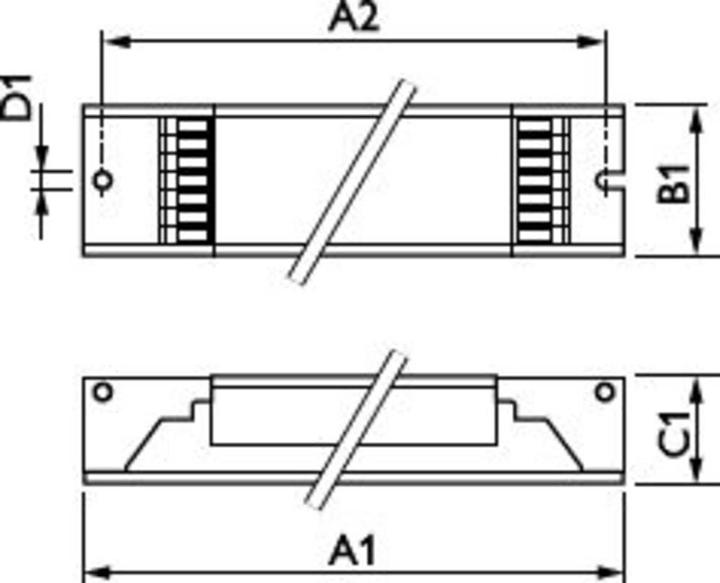

Length: 360 mm
Width: 30 mm
Height: 22 mm

The Philips Lighting HF-R 136 TL-D EII ballast is a robust and compact electronic high-frequency ballast. This extremely efficient solution for MASTER TL5, TL5 Eco, TL-D, PL-L, PL-T/C/R, and TL5c is particularly suitable for applications where high energy efficiency and dimmability are required. It can also be used in areas where lighting is needed to create a comfortable ambiance or where flicker-free light is essential.
EAN: 8711500910134.
